Selector Lever Bezel: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: Selector lever shown removed for clarity.

Install the PRNDL bezel.
- Make sure that the 3 locking tabs are locked in place.

  Fig 1: Locating Tabs
  Courtesy of FORD MOTOR CO.

Vehicles equipped with LED illumination

Connect the LED electrical connector.

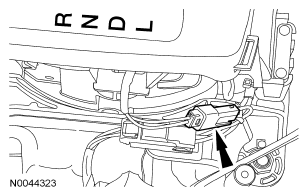

Fig 2: Locating LED Electrical Connector
Courtesy of FORD MOTOR CO.

Vehicles equipped with a light bulb

Connect the light to the PRNDL bezel.

Fig 3: Locating Light From PRNDL Bezel
Courtesy of FORD MOTOR CO.

All vehicles

Install the lower shift knob bezel.

Fig 4: Locating Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.
Install the shift knob and the bolts.

Fig 5: Locating Bolts
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel up and snap it into place.

Fig 6: Sliding Lower Shift Knob Bezel Up
Courtesy of FORD MOTOR CO.
Connect the power outlet electrical connector.

Fig 7: Locating Power Outlet Electrical Connector
Courtesy of FORD MOTOR CO.
Install the power outlet trim panel in the center console.

Fig 8: Locating Power Outlet Trim Panel
Courtesy of FORD MOTOR CO.
Install the upper console panel.

Fig 9: Locating Upper Console Panel
Courtesy of FORD MOTOR CO.
Install the PRNDL trim ring.

Fig 10: Locating PRNDL Trim Ring
Courtesy of FORD MOTOR CO.
