Vehicle Certification (VC) Codes

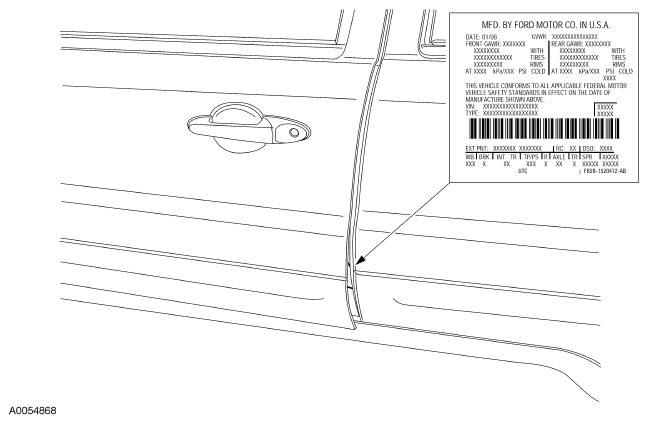

Fig 1: Identifying Vehicle Certification Label Location

Courtesy of FORD MOTOR CO.

The upper portion of the vehicle certification (VC) label contains the manufacturer's name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight rating (GVWR). The VC label is located on the left-hand door jamb.

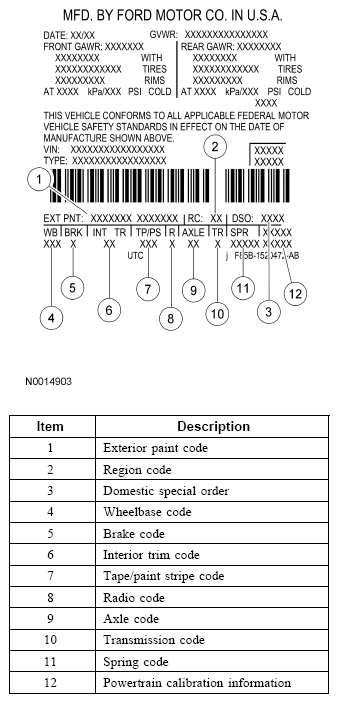

Fig 2: Identifying Vehicle Certification Label With Description

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Paint Code

Courtesy of FORD MOTOR CO.

Exterior paint codes may be listed as a 2-part code. The first set of characters identify the primary body color. The second set of characters (if applicable) identify the vehicle accent or 2-tone body color. All colors are base coat/clear coat

Exterior Color Codes

• C2 - Gold Ash Metallic
• CX - Dark Shadow Gray
• DV - Light Tundra/Titanium Green
• G2 - Redfire
• GW - Fossil Orange
• KR - Norcea Blue Pearl
• R1 - Dark Teal
• SN - Sonic Blue
• T3 - Satellite Silver - Mariner
• T7 - Charcoal Beige - Mariner
• UA - Ebony
• YN - Silver Metallic
• YZ - Oxford White

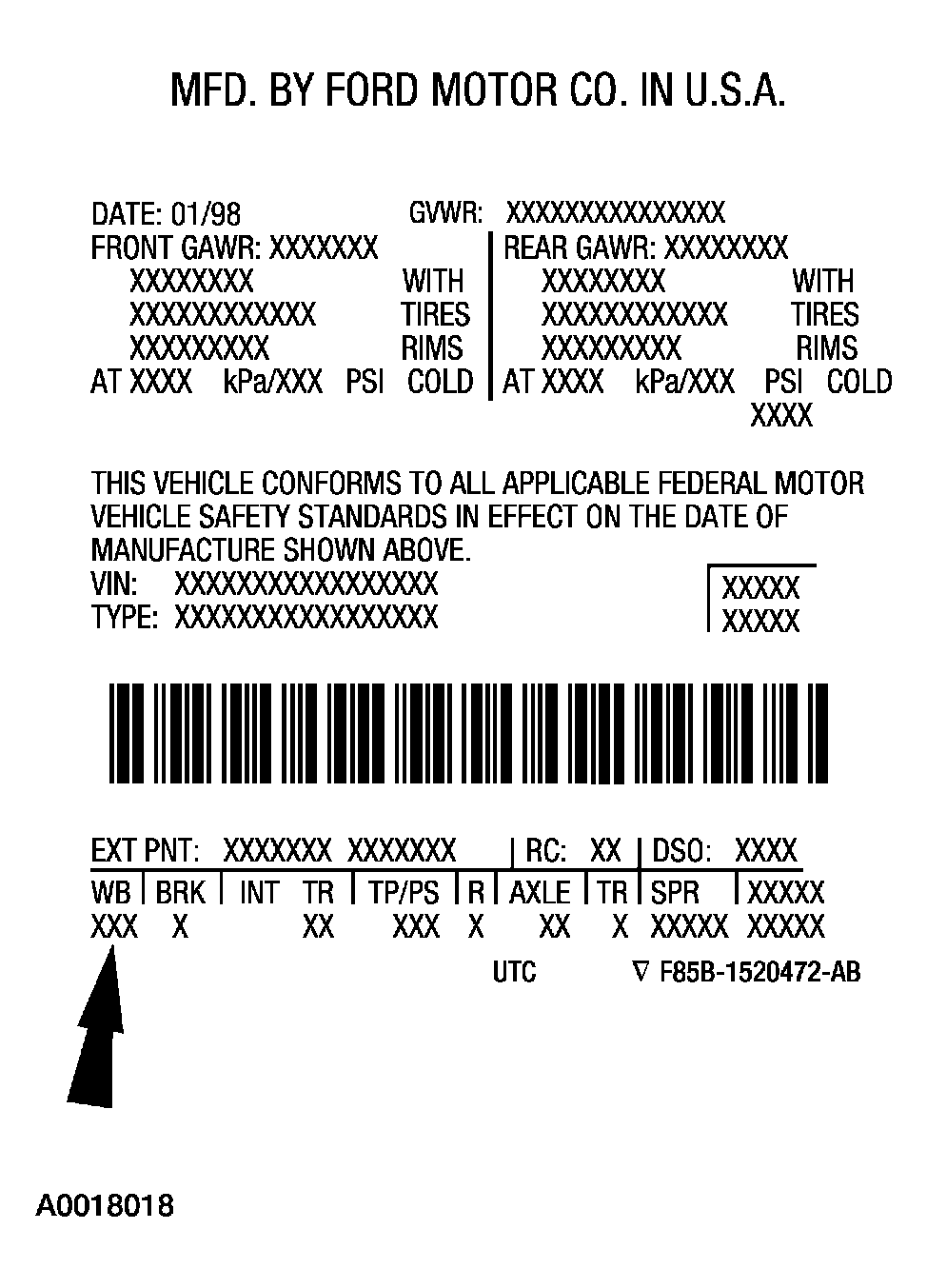

  Fig 4: Identifying Wheelbase Code

  Courtesy of FORD MOTOR CO.
• 103 - 103-inch (2,616-mm) wheelbase

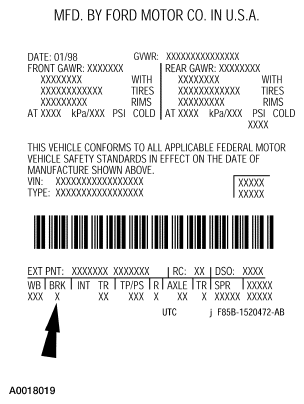

  Fig 5: Identifying Brake Type

  Courtesy of FORD MOTOR CO.
• D - Anti-lock brake system (ABS) with air bags

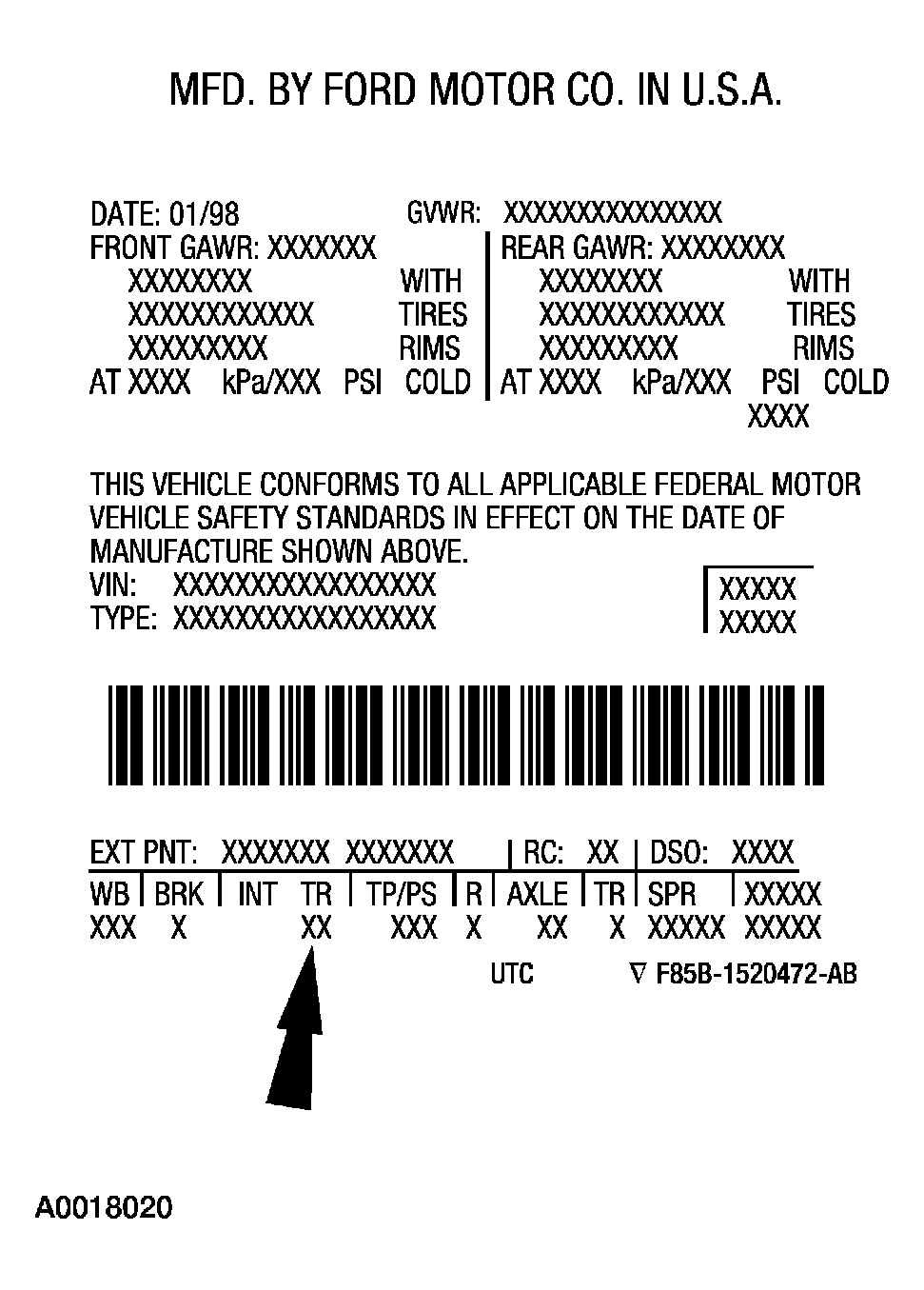

Fig 6: Identifying Interior Trim Code

Courtesy of FORD MOTOR CO.

Interior trim codes are listed as a 2-part code. The first character identifies the interior trim type. The second character identifies the interior trim color.

Interior Trim Type

• 5 - Nudo leather seats
• A - Captains cloth seats
• B - Premium cloth (No Boundaries)
• C - Imola leather seats
• M - Herringbone cloth seats
• N - Toscana leather seats
• P - Premium leather seats (Mercury)
• S - Premium suede seats (Mercury)
• T - DX cloth seats
• W - XLS cloth seats

Interior Trim Color

• 2 - Medium Dark Flint
• B - Ebony
• H - Medium Pebble

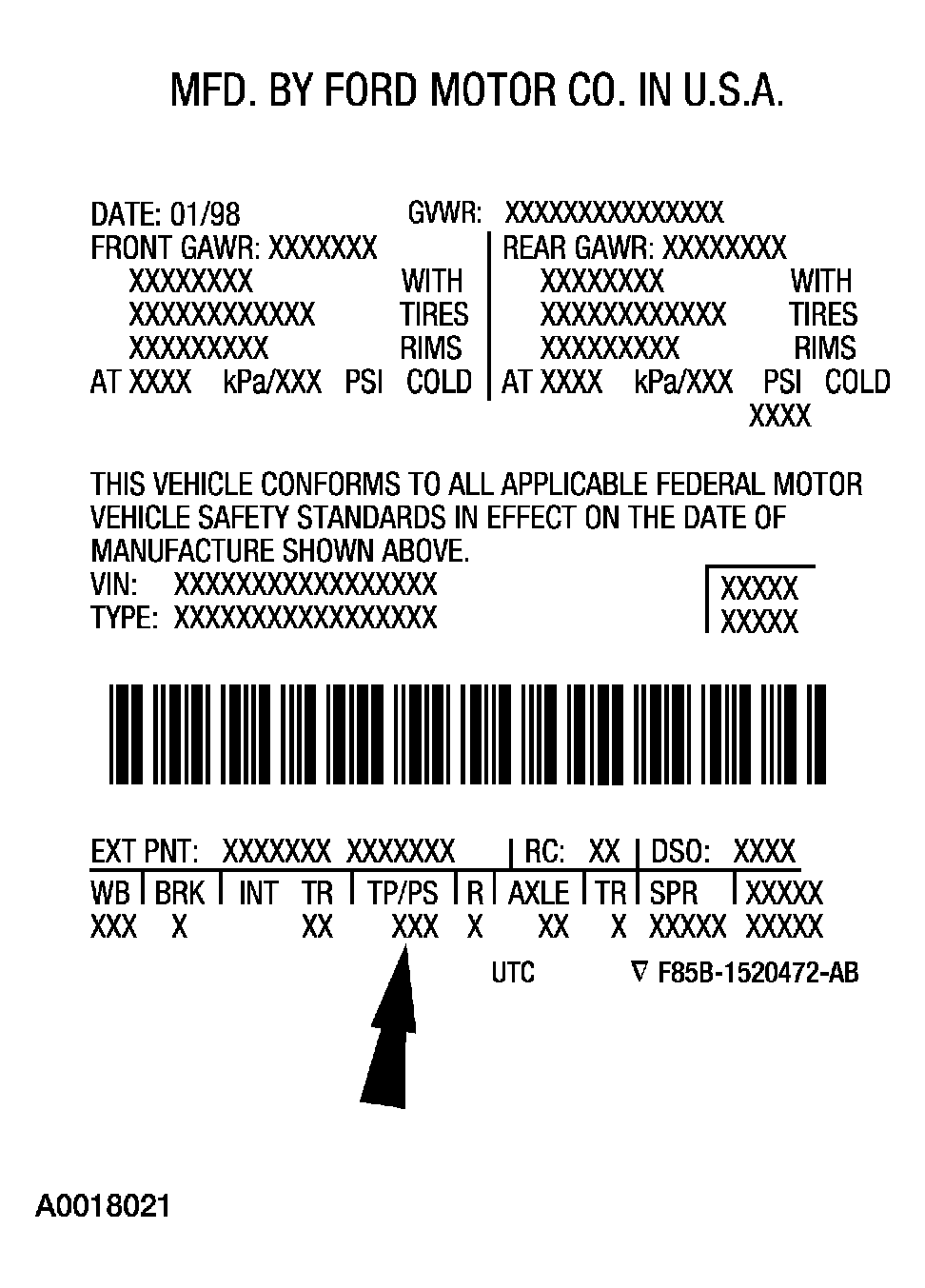

Fig 7: Identifying Tape/Paint Stripe Code

Courtesy of FORD MOTOR CO.

Tape and paint stripe codes do not apply.

Radio Type

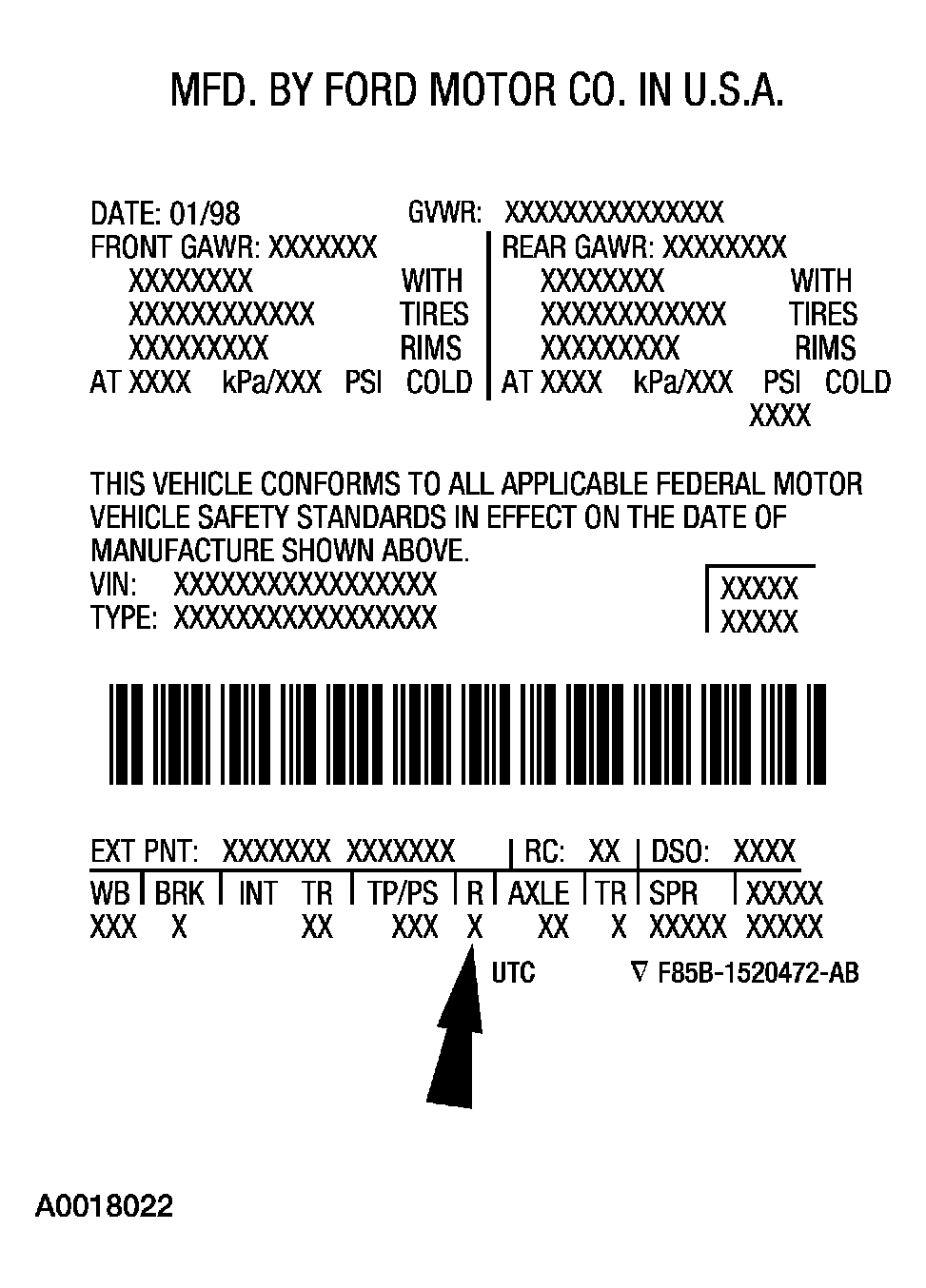

Fig 8: Identifying Radio Code

Courtesy of FORD MOTOR CO.

• 4 - Lowline AM/FM stereo with cassette, clock and removable bezel
• 6 - AM/FM stereo with clock, cassette and compact disc (CD) player with MP3 and satellite capable
• 8 - AM/FM stereo with cassette, compact disc (CD) changer and clock
• B - AM/FM stereo (modular) with 6-disc compact disc (CD) changer (in-dash)
• N - AM/FM stereo with 6-disc compact disc (CD) changer and navigation system
• X - AM/FM stereo with 6-disc compact disc (CD) changer (CDX6) with MP3 and satellite capable
• Z - Electronic AM/FM stereo with compact disc (CD) player and clock with MP3 and satellite capable

  Axle Type

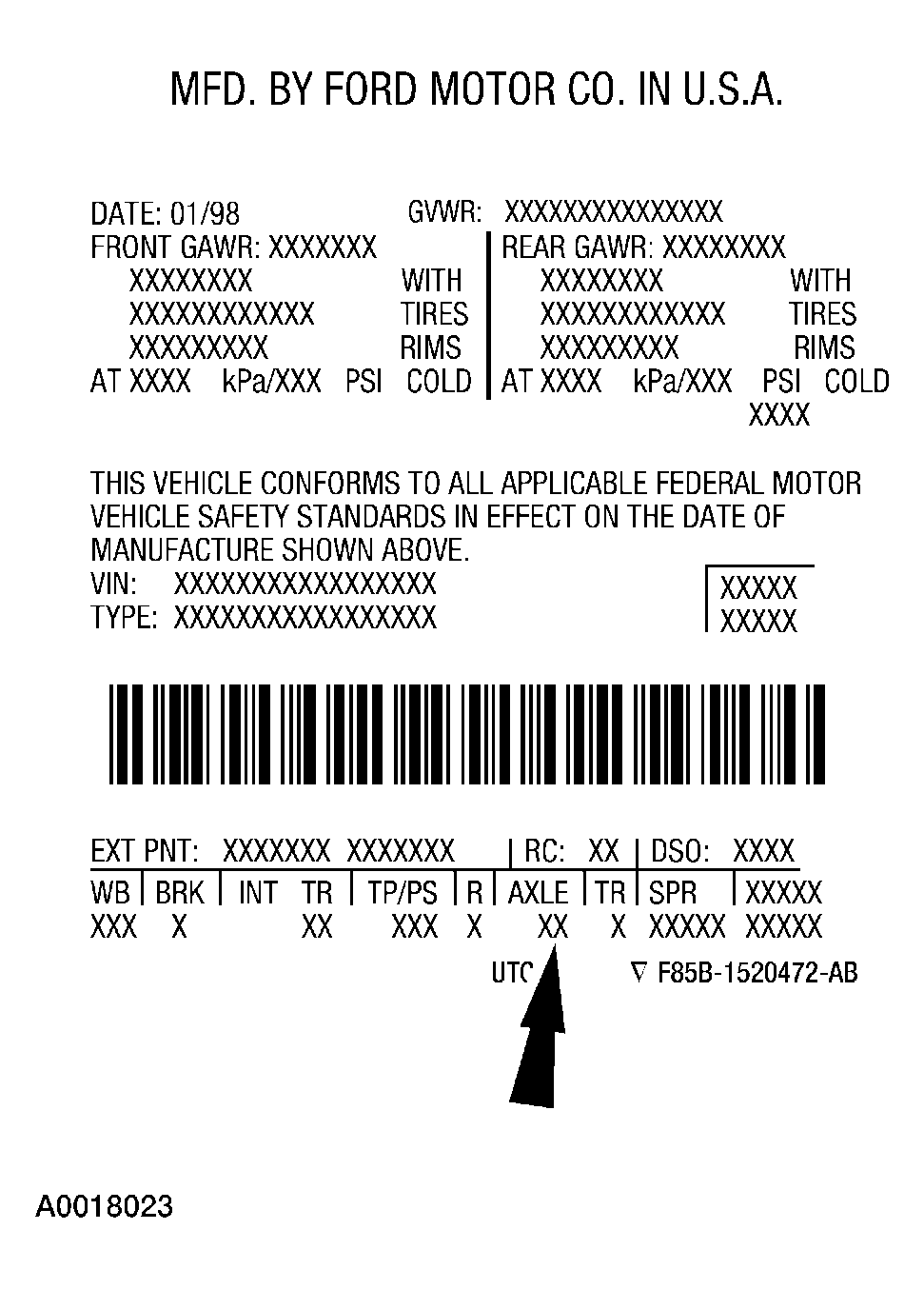

  Fig 9: Identifying Axle Code

  Courtesy of FORD MOTOR CO.
• 96 - 2.93 axle ratio
• AA - Hybrid axle

Transmission Type

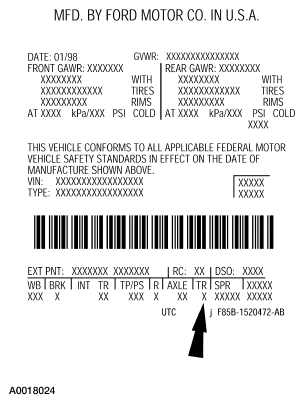

Fig 10: Identifying Transmission Code

Courtesy of FORD MOTOR CO.

• 3 - 5-speed manual
• 4 - 4-speed automatic
• H - CVT automatic, power split electronic (Hybrid)

Spring Code

Fig 11: Identifying Spring Code

Courtesy of FORD MOTOR CO.

Front spring base part number is 5310, rear spring base part number is 5726.

Powertrain Calibration Information

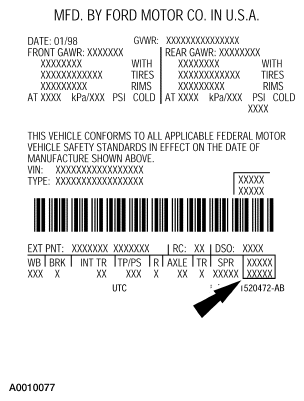

Fig 12: Identifying Powertrain Calibration Information

Courtesy of FORD MOTOR CO.

Powertrain calibration information is printed in the lower right corner of the VC label. Only base calibration information is printed. Revision levels will not appear, however, they can be found in On Line Automotive Service Information System (OASIS).

Powertrain Calibration Information

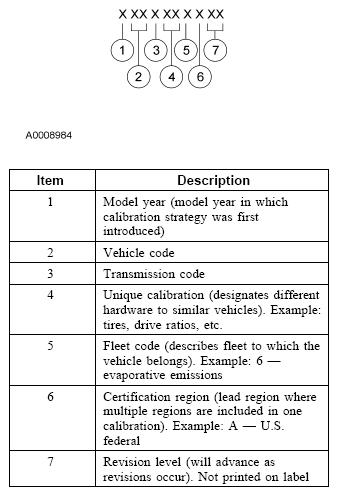

Fig 13: Identifying Powertrain Calibration Information With Description

Courtesy of FORD MOTOR CO.

Model Year

• 1 - 2001
• 2 - 2002
• 3 - 2003
• 4 - 2004
• 5 - 2005
• 6 - 2006

Vehicle Line

• M1 - Escape/Mariner
• M6 - Escape Hybrid gas/electric

Transmission

• 1 - Automatic transmission
• 2 - Manual transmission
