Seat Cushion - Front: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown. For disassembly and assembly of the passenger seat cushion, refer to OCCUPANT CLASSIFICATION SENSOR .

NOTE: Front 50 percent seat shown, 40 percent seat similar.

NOTE: The torque specification for power recliner-to-seat track bolts is shown. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.

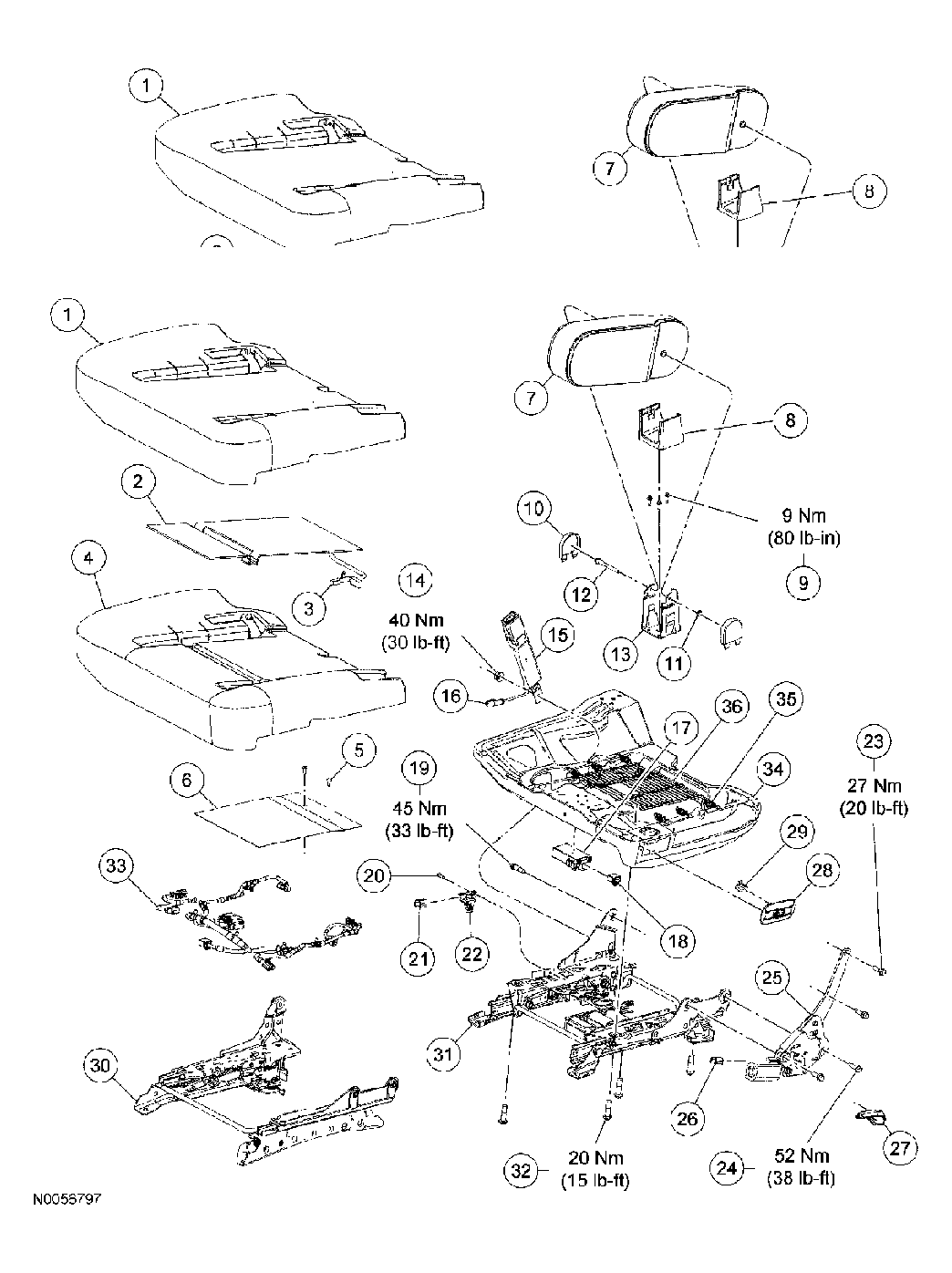

Fig 1: Exploded View Of Seat Cushion - Front (1 Of 2)

Courtesy of FORD MOTOR CO.

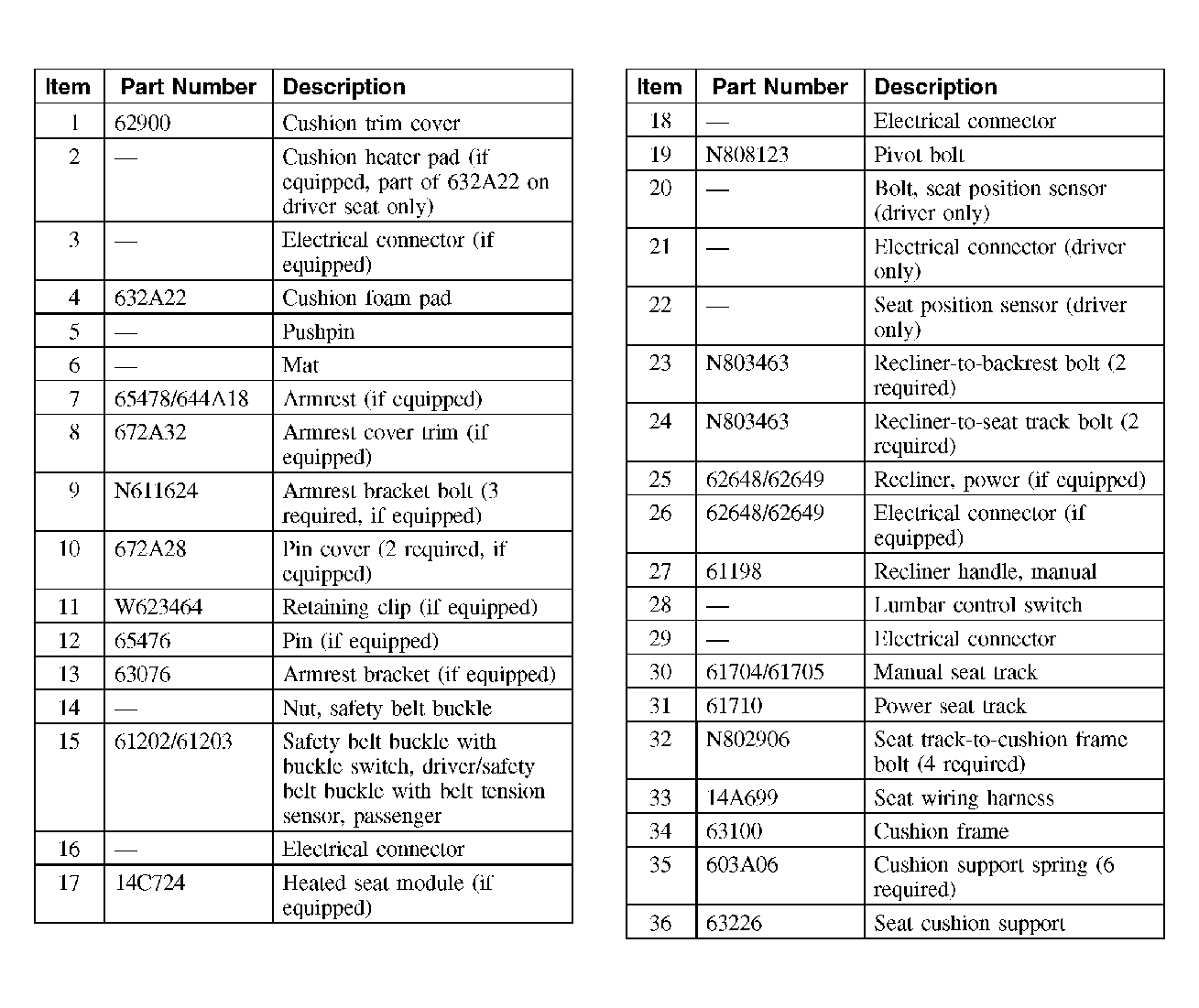

Fig 2: Exploded View Of Seat Cushion - Front (2 Of 2)

Courtesy of FORD MOTOR CO.
