Battery and Battery Tray - Exploded View: Notes

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

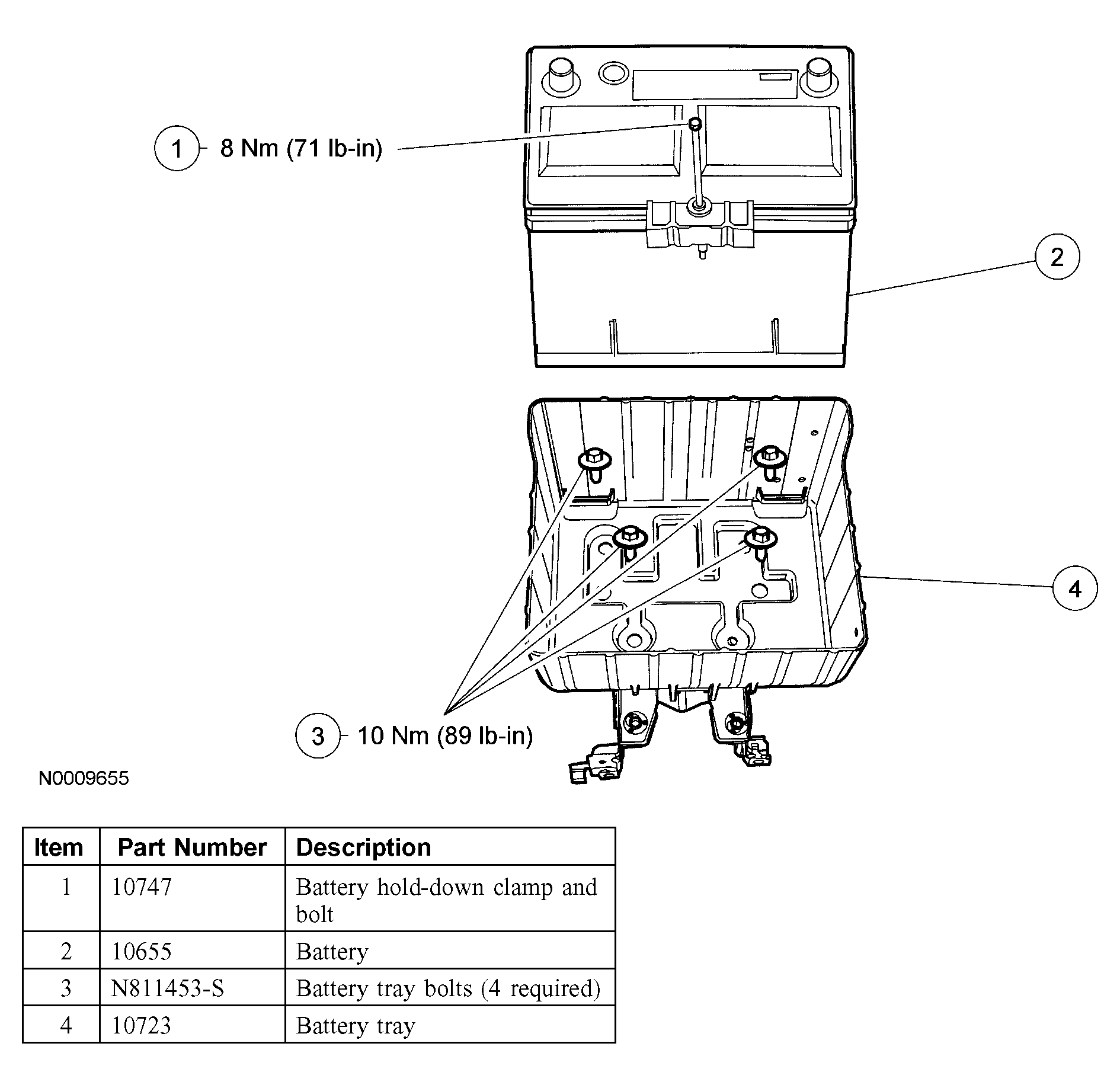

Fig 1: Removing/Installing Battery And Battery Tray
G03992679Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the PROCEDURES .
