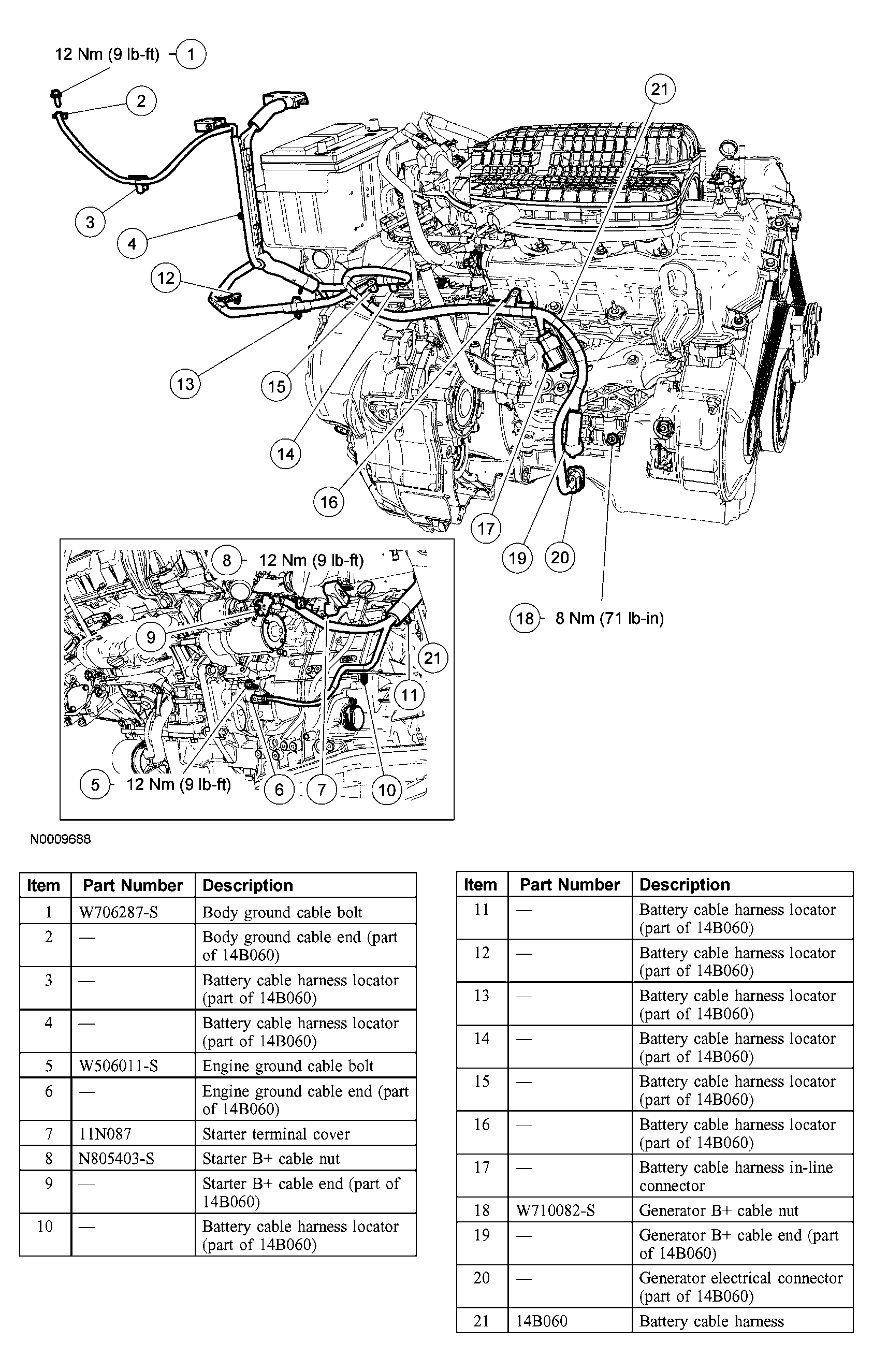

Fig 1: Identifying Components Of Battery Cables (Vehicles Equipped With Aisin Transaxle)
Courtesy of FORD MOTOR CO.

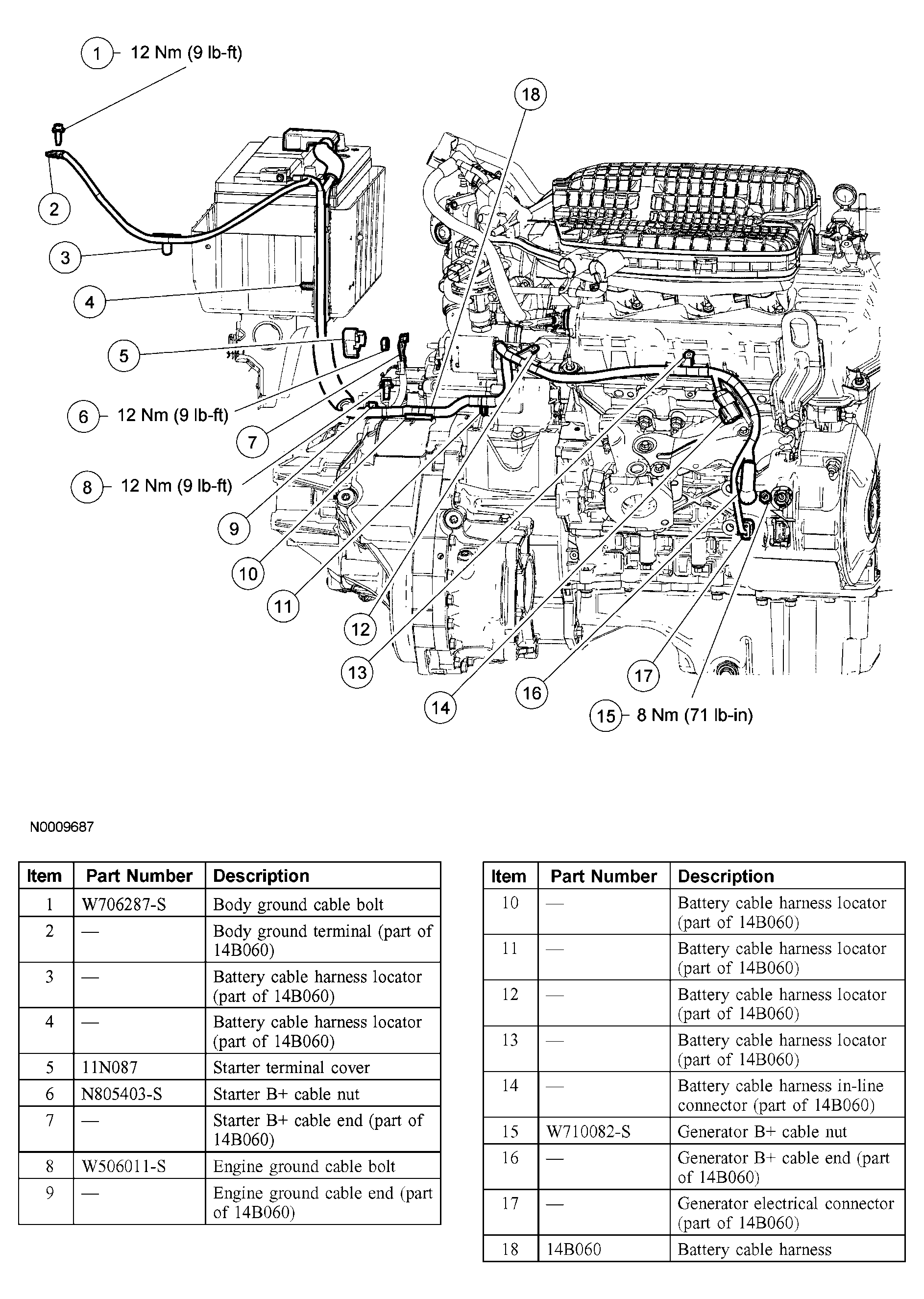

Fig 2: Identifying Components Of Battery Cables (Vehicles Equipped With Continuously Variable Transaxle (CVT))
