Differential Electronic Module (DEM): Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing new components, there is no reason to remove the seals from the old components.

NOTE: The differential electronic module (DEM) and solenoid valve are calibrated together and must be installed as a set. If installing a new DEM or solenoid valve, install them as a set only.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

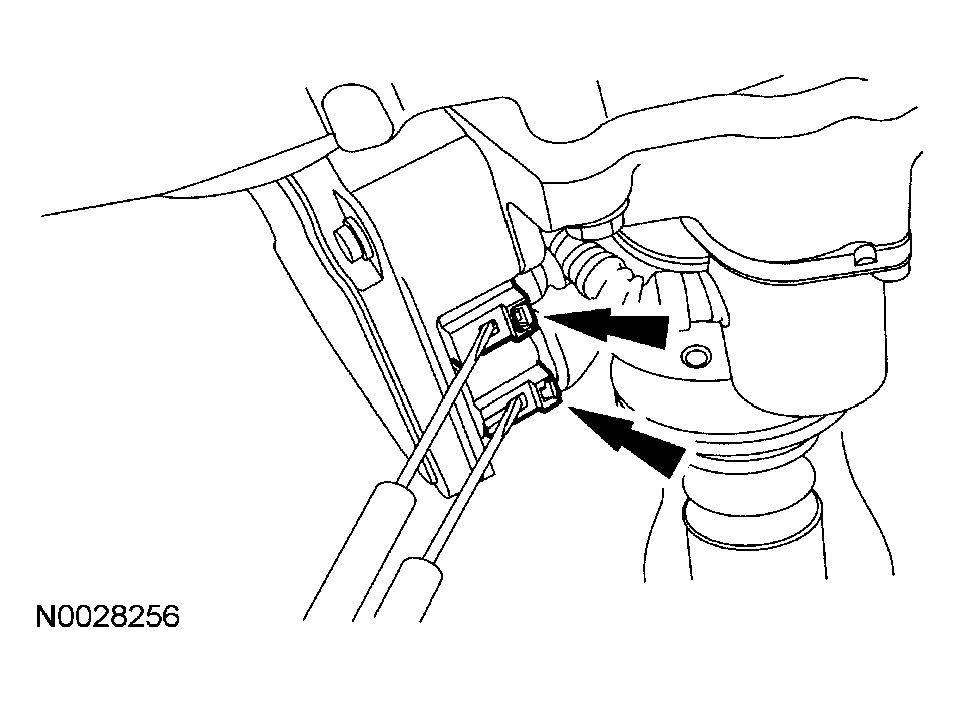

Disconnect the DEM by pushing the connector tab through the slot while pulling the connector out.

Fig 1: Disconnecting DEM By Pushing Connector Tab Through Slot While Pulling Connector Out
Courtesy of FORD MOTOR CO.

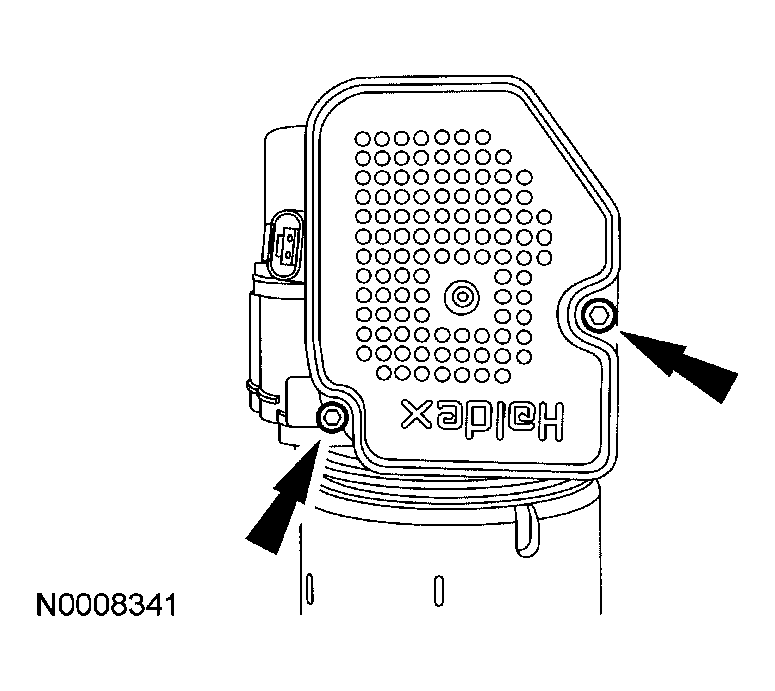

Remove the 2 DEM bolts, then remove the DEM, including the solenoid vlave and the oil temperature sensor.

Fig 2: Removing DEM Including Solenoid Valve And Oil Temperature Sensor
Courtesy of FORD MOTOR CO.
Using channel locks, carefully remove the solenoid valve.
Remove the oil temperature sensor from the active on-demand coupling if it did not come out when the DEM was removed.

Fig 3: Removing Oil Temperature Sensor From Active On-Demand Coupling
Courtesy of FORD MOTOR CO.
