Removal and Installation

Side obstacle detection (SOD) module only

NOTE: Module configuration is only required if a new Side Obstacle Detection Control Module - Left (SOD-L) or Side Obstacle Detection Control Module - Right (SOD-R) is being installed. Upload the SOD-L or SOD-R module configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in MODULE CONFIGURATION -- FUSION MILAN & MKZ article.
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
2. Remove the 3 rear fender splash shield push pins. For additional information, refer to Front End Body Panels - Exploded View in BUMPER SYSTEM -- FUSION, MILAN & MKZ article.
3. Remove the 4 lower rear bumper quarter panel splash shield screws.
4. Remove the rear bumper cover screw and gently flex it to access the SOD-L or the SOD-R.
   • Remove the screw and washer.
   • Disconnect the electrical connector.
5. Remove the SOD-L or the SOD-R.
6. To install, reverse the removal procedure.
   • Download the SOD-L or the SOD-R configuration information. For additional information, refer to MODULE CONFIGURATION -- FUSION MILAN & MKZ article.
   NOTE: When enabling the Blind Spot Information System (BLIS®) and Cross Traffic Alert (CTA) system make sure to enable the systems in both the SOD-L and the SOD-R. Failure to do so results in a mismatch system fault.
   • Verify in the programmable parameters that the Blind Spot Information System (BLIS®) and Cross Traffic Alert (CTA) system are enabled in the SOD-L and SOD-R.
   • After the SOD-L or the SOD-R is configured, shift the selector lever though all the transaxle gear positions (PRNDL).

   SOD-L/SOD-R Bracket only

7. Remove the rear bumper cover. For additional information, refer to BUMPER SYSTEM -- FUSION, MILAN & MKZ article.
8. Remove the SOD-L or the SOD-R.
   • Remove the screw and washer.
   • Disconnect the electrical connector and the wiring harness retainer.
NOTE: The SOD-L/SOD-R bracket has a strip of adhesive tape that holding it to the vehicle.
9. Using a suitable tool, such as a flat-bladed scraper, pry the SOD-L/SOD-R bracket away from the vehicle.
   • To install, apply hand pressure over the adhesive tape bonding area for a minimum of 15 seconds.

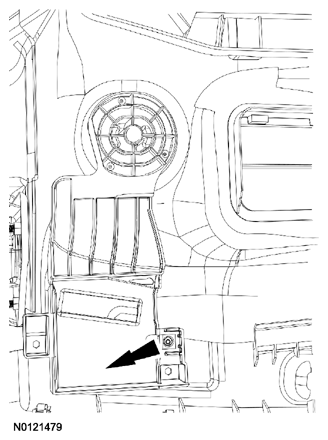

     Fig 1: Locating SOD-L Bracket/SOD-R Bracket

     Courtesy of FORD MOTOR CO.
NOTE: Remove the adhesive tape protective cover before installing the retaining tabs in the vehicle body.
NOTE: When installing the new SOD-L/SOD-R bracket, make sure the retaining tab portion of the SOD-L/SOD-R bracket snaps firmly into the vehicle and 2 audible clicks are heard.
10. Using a suitable tool, such as pliers, squeeze the retaining tabs of the SOD-L/SOD-R bracket, located in the luggage compartment behind the side carpet panel, and remove the SOD-L/SOD-R bracket.
    • Discard the SOD-L/SOD-R bracket.
      Fig 2: Locating SOD-L Bracket/SOD-R Bracket Tabs

      Courtesy of FORD MOTOR CO.
NOTE: Allow the adhesive tape bonding surface to completely dry before installing the new SOD-L/SOD-R bracket.
11. Clean the adhesive tape bonding surface.
    • Using a flat bladed wood or plastic scraper remove the remaining adhesive from the vehicle body.
    • Clean the adhesive tape bonding surface on the vehicle body with isopropyl alcohol (obtain locally).
12. To install, reverse the removal procedure.
