Side Obstacle Detection (SOD) Module: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

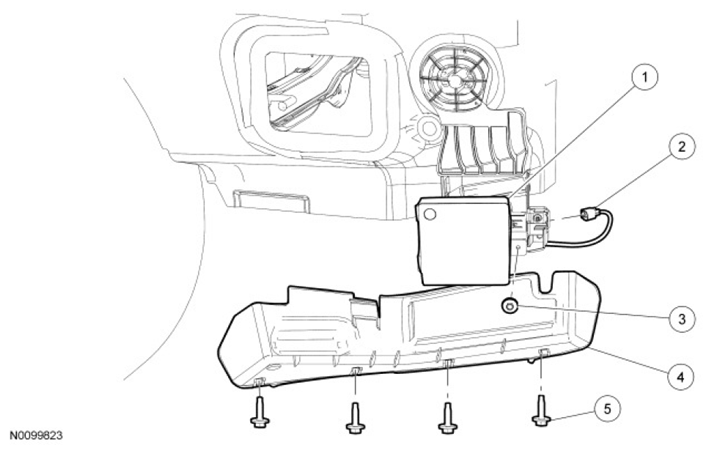

NOTE:
Rear bumper cover removed for clarity.
NOTE:
Left rear quarter panel shown in the illustration, right side similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C689 | Side Obstacle Detection Control Module - Left (SOD-L)/Side Obstacle Detection Control Module - Right (SOD-R) |
| 2 | - | SOD-L/SOD-R electrical connector (part of 15K868) |
| 3 | W705796 | SOD-L/SOD-R screw and washer |
| 4 | - | Lower rear bumper quarter panel splash shield |
| 5 | - | Lower rear bumper quarter panel splash shield screws |
