Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

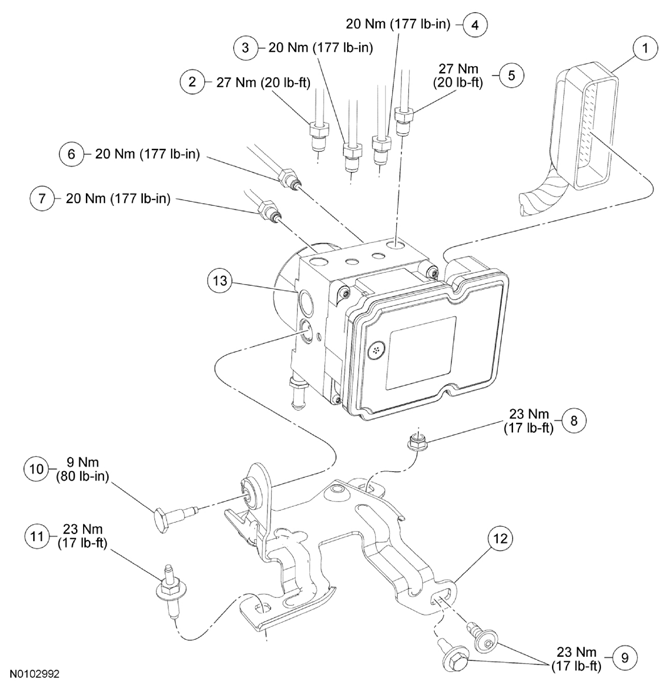

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector (part of 14290) |
| 2 | - | Master cylinder secondary brake tube fitting (part of 2C360) |
| 3 | - | RH front brake tube fitting (part of 2263) |
| 4 | - | Rear back pressure valve brake tube fitting (part of 2C360) |
| 5 | - | Master cylinder primary brake tube fitting (part of 2C360) |
| 6 | - | Rear back pressure valve brake tube fitting (part of 2C360) |
| 7 | - | LH front brake tube fitting (part of 2C360) |
| 8 | W520102 | Hydraulic Control Unit (HCU) bracket-to-frame nut |
| 9 | W712710 | HCU bracket-to-frame bolt (Torx head) (3.5L only) |
| 9 | W505433 | HCU bracket-to-frame bolt (hex head) all other engines |
| 10 | 2C398 | HCU bracket-to-HCU bolt |
| 11 | W704925 | HCU bracket-to-frame stud bolt |
| 12 | 2C304 | HCU bracket |
| 13 | 2C346 | HCU |
