Side Impact Sensor - Front Door: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown in the illustration, LH similar.

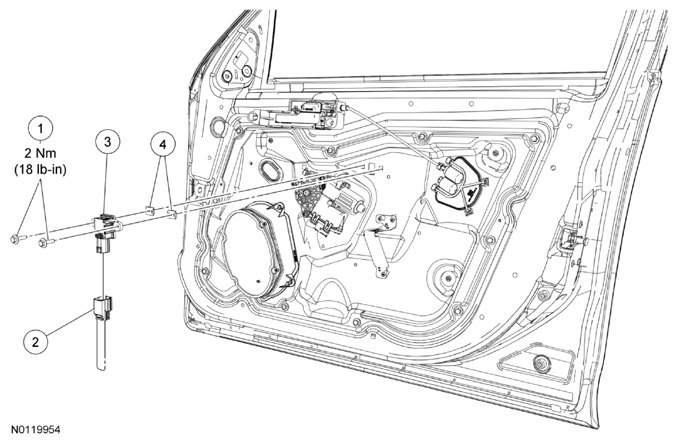

Fig 1: Side Impact Sensor Replacement Components With Torque Specifications - Front Door
G07784008Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W705314 Side impact sensor bolts (2 required)
2 - Side impact sensor electrical connector (part of 14630)
3 14B345 Side impact sensor
4 W713617 Side impact sensor pushnuts (2 required)
