Seat Position Sensor
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

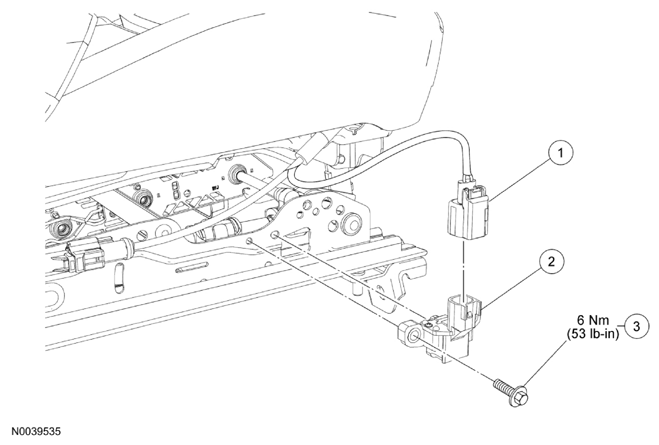

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | 14B416 | Seat position sensor |
| 3 | W505256 | Seat position sensor bolt |
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Remove the driver seat. For additional information, refer to SEAT SYSTEM - SEATS -- FUSION, MILAN & MKZ article.
- Disconnect the seat position sensor electrical connector.
- Remove the bolt and seat position sensor.
- To install, tighten to 6 Nm (53 lb-in).
- To install, reverse the removal procedure.
- Install the driver seat. For additional information, refer to SEAT SYSTEM - SEATS -- FUSION, MILAN & MKZ article.
WARNING:
Always tighten the seat position sensor retaining bolt to specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
