Power Steering Pump Pulley: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools

Illustration Tool Name Tool Number
GF0001266Courtesy of FORD MOTOR CO.
Installer, Power Steering Pump Pulley 211-185 (T91P-3A733-A)
GF0001265Courtesy of FORD MOTOR CO.
Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)

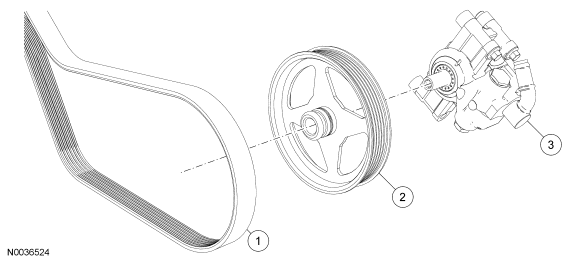

Fig 1: Exploded View Of Power Steering Pump Pulley
GF0014235Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8620 Accessory drive belt
2 3D673 Power steering pump pulley
3 3A674 Power steering pump
