Suction Accumulator: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

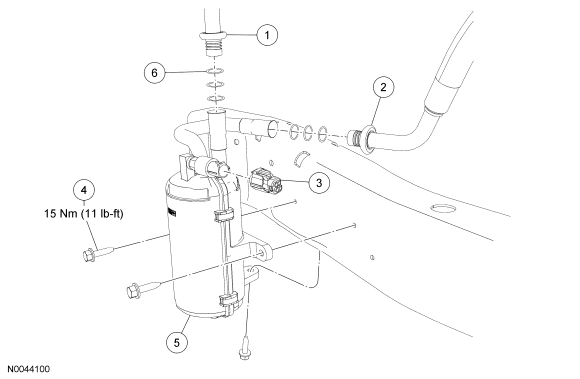

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Suction accumulator outlet fitting (part of 19867) |
| 2 | - | Suction accumulator inlet fitting (part of 19835) |
| 3 | 12B637 | A/C cycling switch electrical connector |
| 4 | N808809 | Suction accumulator bolt (3 required) |
| 5 | 19C836 | Suction accumulator |
| 6 | 19E889 | O-ring seal (6 required) |
