Shock Absorber & Spring Assembly: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

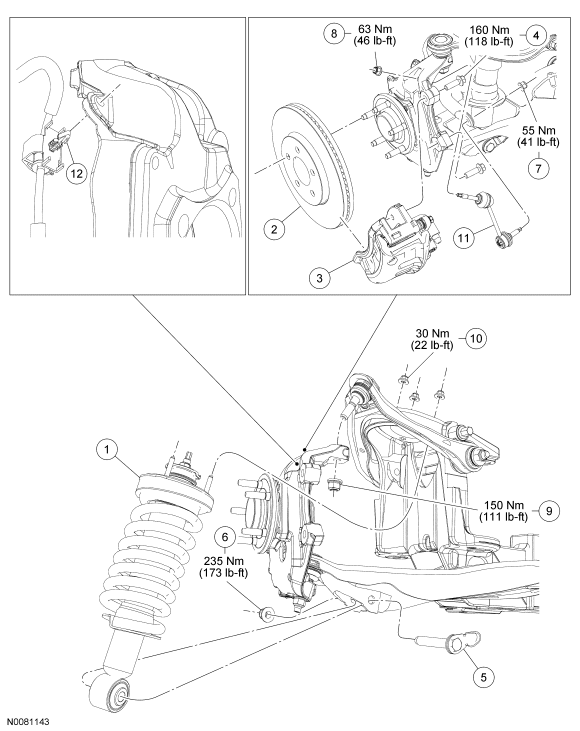

| Item | Part Number | Description |
|---|---|---|
| 1 | 18045/5310 | Shock absorber/coil spring assembly |
| 2 | 1125 | Brake disc |
| 3 | 2B120 | Brake caliper and anchor plate |
| 4 | W707589 | Brake caliper anchor plate bolts (2 required) |
| 5 | 3C177 | Shock absorber lower flag bolt |
| 6 | W520216 | Shock absorber lower nut |
| 7 | W520213 | Lower stabilizer bar link nut |
| 8 | W520213 | Upper stabilizer bar link nut |
| 9 | W710298 | Upper ball joint nut |
| 10 | W700390 | Shock absorber mounting bracket nut (3 required) |
| 11 | 3B438 | Stabilizer bar link |
| 12 | - | Wheel speed sensor wiring harness retainer (part of 2C204) |
