Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

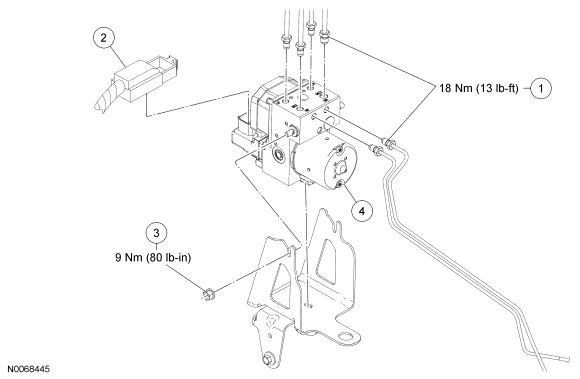

| Item | Part Number | Description |
|---|---|---|
| 1 | 2C296 | Brake tube-to-hydraulic control unit (HCU) fittings (6 required) |
| 2 | - | ABS module electrical connector (part of 14290) |
| 3 | 2C229 | HCU-to-mounting bracket nut (2 required) |
| 4 | 2C286 | HCU |
