Right Rear Heated Seat Module Connector - C3163

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

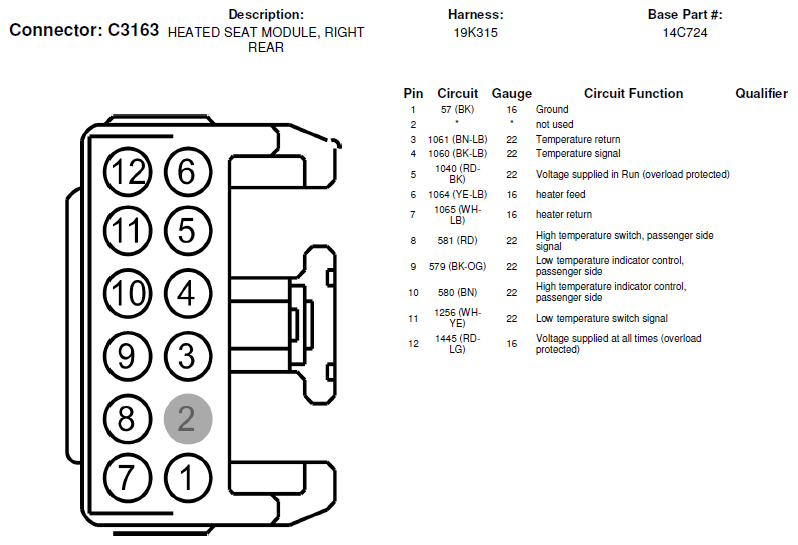

Fig 1: Right Rear Heated Seat Module Connector End View (C3163)
G06414377Courtesy of FORD MOTOR CO.
