Left Rear Window Adjust Switch Connector - C701

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

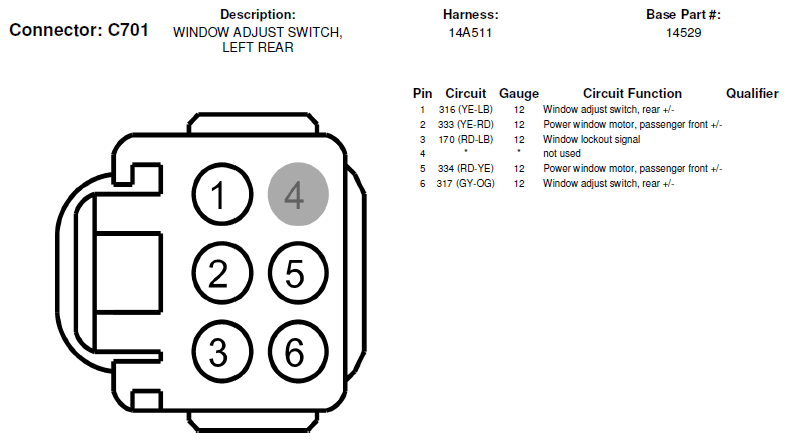

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)
G06414274Courtesy of FORD MOTOR CO.
