Parking Aid Sensor: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Bumper shown in illustration removed for clarity.

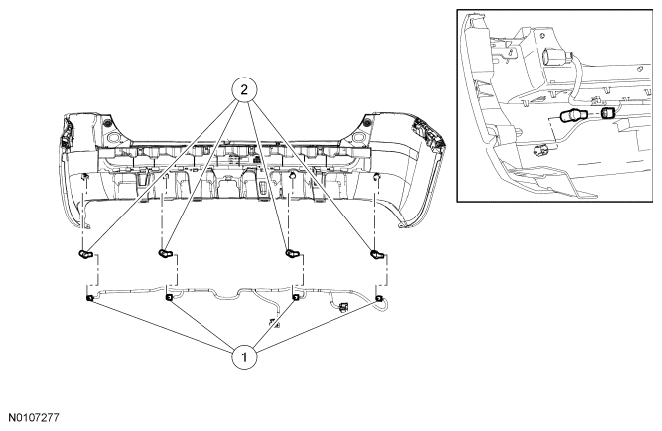

Fig 1: Identifying Parking Aid Sensor And Electrical Connectors
G06390746Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Electrical connectors (part of 15K868)
2 15K859 Parking aid sensors
