Compressor to Condenser Discharge Line - 2.5L: Material
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

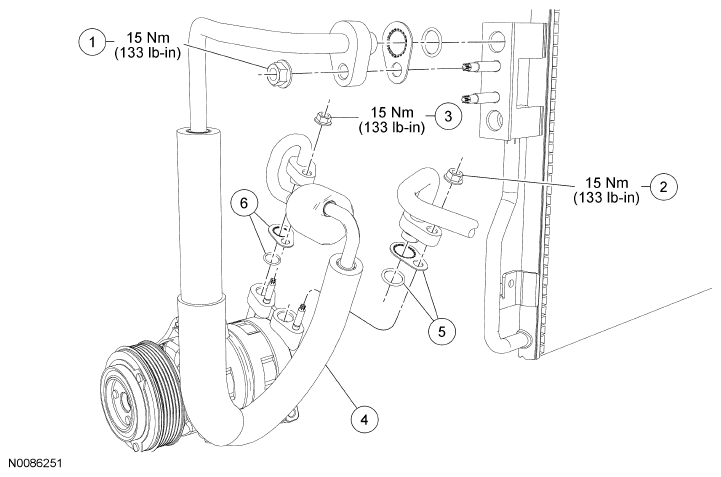

Fig 1: Compressor To Condenser Discharge Line Replacement Components (2.5L) With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut |
| 2 | W520413 | A/C compressor suction fitting nut |
| 3 | W520413 | A/C compressor discharge fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | 19B596 | O-ring and gasket seal kit |
| 6 | 19B596 | O-ring and gasket seal kit (2 required) |
