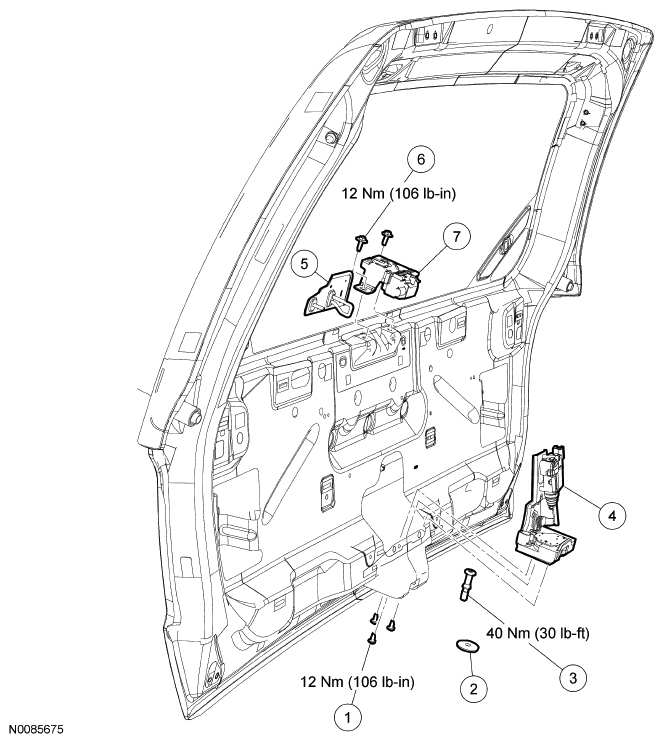

Liftgate Handle, Lock and Latch - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705830-S435 | Liftgate latch bolts (3 required) |
| 2 | 7843252 | Liftgate latch striker plate |
| 3 | 7843252 | Liftgate latch striker |
| 4 | 7843150 | Liftgate latch |
| 5 | 78440A58 | Liftgate window latch striker |
| 6 | W707257-S439 | Liftgate window latch bolts (2 required) |
| 7 | 7840860 | Liftgate window latch |
- For additional information, refer to the procedures in this article.
