Antenna Cable - AM/FM: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: View shown from behind instrument panel for clarity.

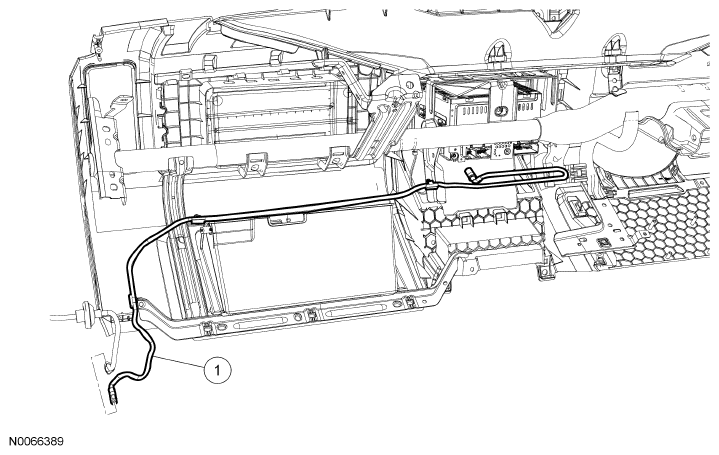

Fig 1: Identifying AM/FM Antenna Cable

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	18812	AM/FM antenna cable
