Driver Air Bag Module: Removal
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING:
Never probe the electrical connectors on air bag, Safety Canopy® or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .

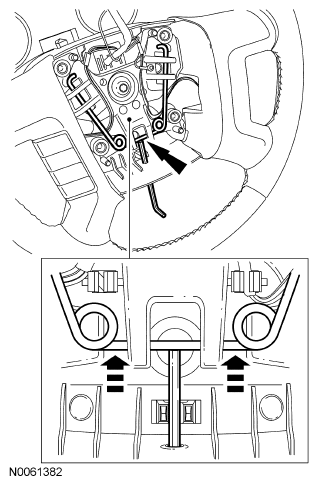

- Using a 3-mm Allen wrench or a suitable tool, place it in the driver air bag module release hole on the underside of the steering wheel.
- Position the 3-mm Allen wrench or suitable tool against the wire clip and push inward disengaging the wire clip from the 3 driver air bag module hooks.
- Disconnect the horn and 2 driver air bag module electrical connectors and remove the driver air bag module.
NOTE:
During driver air bag module removal, make sure all 3 driver air bag module hooks are released from the steering wheel wire clip. Failure to do so may cause damage to the driver air bag module and/or the steering wheel.
