Console - Floor: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

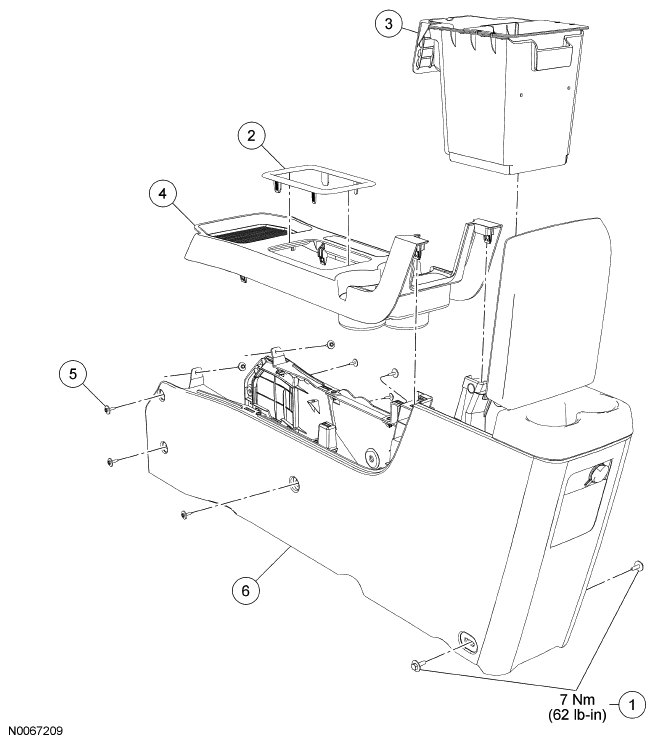

Fig 1: Selector Lever Trim Ring, Floor Console Stage Bin And Floor Console With Torque Specifications
G06099804Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W707257 Floor console rear bolts
2 7E391 Selector lever trim ring
3 - Floor console storage bin
4 045A76 Floor console finish panel
5 W705796 Floor console screw (8 required)
6 045A36 Floor console
