Headlamp Switch: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

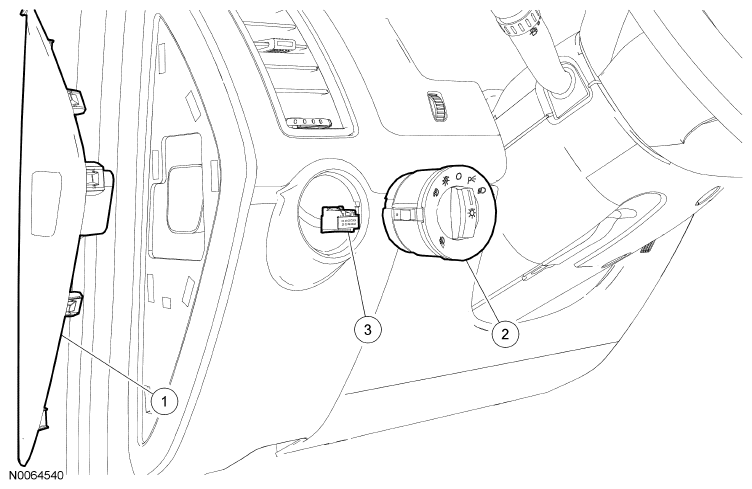

Fig 1: Identifying Headlamp Switch With Electrical Connector And Instrument Panel Side Finish Panel
G06099259Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7804481 Instrument panel side finish panel
2 11654 Headlamp switch
3 - Headlamp switch electrical connectors (part of 14401)
