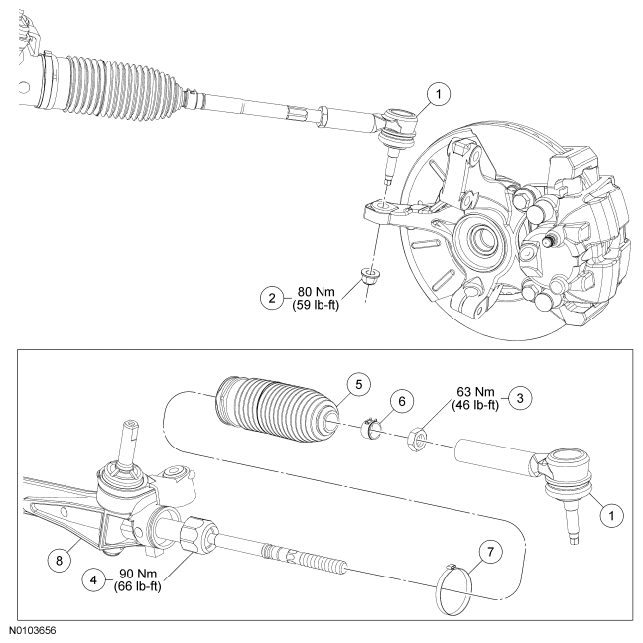

Steering Linkage - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A130 | Outer tie-rod end |
| 2 | W705606 | Outer tie-rod nut |
| 3 | W713882 | Tie-rod end jam nut |
| 4 | 3280 | Inner tie-rod end |
| 5 | - | Steering gear bellows boot kit (part of 3332A boot kit) |
| 6 | - | Steering gear bellows boot clamp, outer (part of 3332A boot kit) |
| 7 | - | Steering gear bellows boot clamp, inner (part of 3332A boot kit) |
| 8 | 3504 | Steering gear |
- For additional information, refer to the procedures in this service information.
