2.5L Hybrid
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

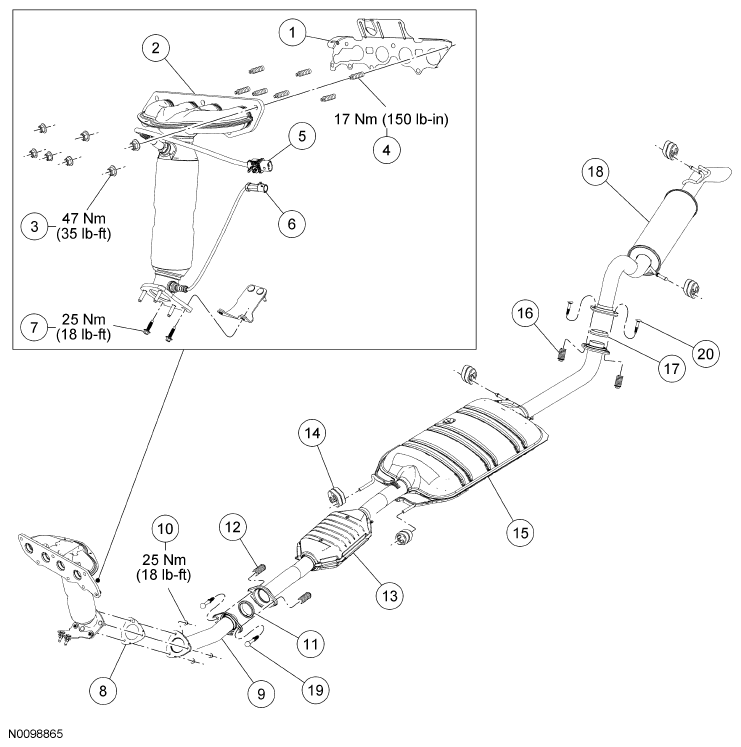

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9448 | Catalytic converter manifold gasket |
| 2 | 5G241 | Catalytic converter |
| 3 | W708176 | Catalytic converter manifold nut (7 required) |
| 4 | W704474 | Catalytic converter manifold stud (7 required) |
| 5 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector |
| 6 | 14A464 | Catalyst Monitor Sensor (CMS) electrical connector |
| 7 | W712021 | Exhaust downpipe bracket bolt (2 required) |
| 8 | 9451 | Gasket |
| 9 | 5E256 | Exhaust intermediate pipe |
| 10 | W520413 | Exhaust intermediate pipe nut (3 required) |
| 11 | 5E241 | Gasket |
| 12 | 5G215 | Catalytic converter-to-intermediate pipe spring nut (2 required) |
| 13 | 5E211 | Underbody catalytic converter |
| 14 | 5A262 | Exhaust hanger (5 required) |
| 15 | 5230 | Muffler |
| 16 | 5G215 | Resonator-to-muffler spring nut (2 required) |
| 17 | 5E241 | Gasket |
| 18 | 5212 | Resonator assembly |
| 19 | W790170 | Exhaust intermediate pipe flange stud (2 required) |
| 20 | W790190 | Resonator flange stud (2 required) |
- For additional information, refer to the appropriate procedure(s).
