Gearshift Cables: Installation

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the gearshift cables through the bulkhead into the exterior.
    NOTE: When inserting the gearshift cables through the bulkhead, use care and do not damage the heat shielding.
    NOTE: When inserting the gearshift cables through the bulkhead, make sure the arrow on the grommet is pointing upward.
  2. Install the 2 gearshift cable grommet nuts and attach the gearshift cables to the floor.
    • Tighten to 8 Nm (71 lb-in).
    Fig 1: Locating Gearshift Cable Grommet Nuts
    G06276158Courtesy of FORD MOTOR CO.
  3. Install the wiring harness onto the studs.
  4. Connect the gearshift cables to the gearshift lever base.
    NOTE: Make sure the gearshift cables are fully seated into the gearshift lever base or damage may occur.
    Fig 2: Locating Gearshift Cables & Gearshift Lever Base
    G06276149Courtesy of FORD MOTOR CO.
  5. Connect the select cable and the shift cable to the gearshift lever.
    Fig 3: Locating Shift Cable & Select Cable
    G06276156Courtesy of FORD MOTOR CO.
  6. Position the insulation blanket into place.
  7. Install the RCM  . For additional information, refer to INSTALLATION .
  8. Connect the gearshift cables to the transaxle bracket.
    NOTE: Make sure the gearshift cables are fully seated into the transaxle bracket or damage may occur.
    NOTE: The gearshift cable ends and transaxle bracket slots are unique. They can only be fully seated in the correct slot.
    NOTE: The top cable will have id tape.

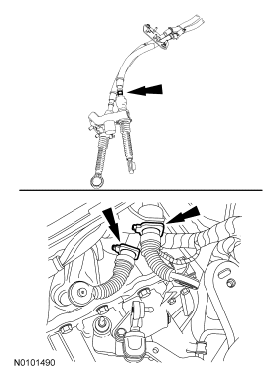

    Fig 4: Locating Gearshift Cables & Transaxle Bracket
    G06276161Courtesy of FORD MOTOR CO.
  9. Connect the gearshift cables to the transaxle shift control lever.
    Fig 5: Locating Gearshift Cables & Transaxle Shift Control Lever
    G06276153Courtesy of FORD MOTOR CO.
  10. Adjust the gearshift cables. For additional information, refer to GEARSHIFT CABLE ADJUSTMENT .
  11. Install the battery tray. For additional information, refer to REMOVAL AND INSTALLATION .
  12. Install the heater core and evaporator core housing. For additional information, refer to REMOVAL AND INSTALLATION .
