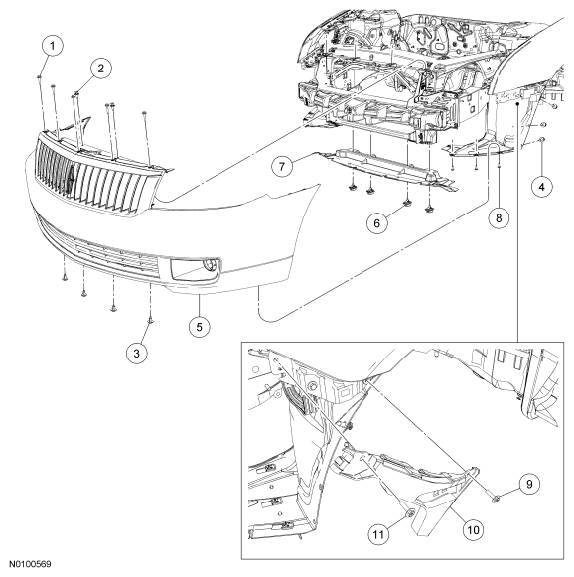

Bumper - Exploded View, Front: MKZ
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W711676 | Upper radiator grille bolt (2 required) |
| 2 | N807389 | Upper radiator grille pin-type retainer (2 required) |
| 3 | W709976 | Lower air deflector screw (4 required) |
| 4 | N807389 | Fender splash shield pin-type retainer (4 required) |
| 5 | 17C831 | Front bumper cover |
| 6 | N807389 | Lower air deflector pin-type retainer (4 required) |
| 7 | 8327 | Lower air deflector |
| 8 | W709976 | Fender splash shield screw (6 required) |
| 9 | N808650 | Bumper cover mounting bracket rear bolt |
| 10 | 17D958 LH/17D959 RH | Bumper cover mounting bracket |
| 11 | W711676 | Bumper cover mounting bracket front bolt |
- For additional information, refer to the appropriate procedure(s).
