Speaker - Door: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fusion and Milan shown.
NOTE:
Front door shown, rear door similar.

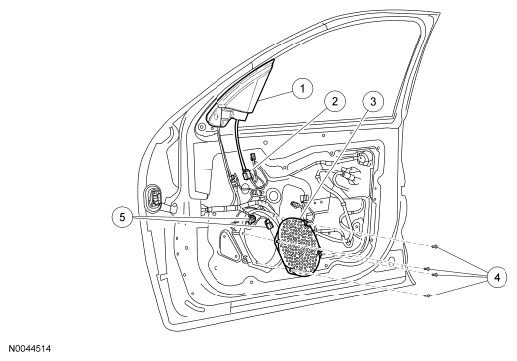

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Sail panel |
| 2 | - | Front door tweeter speaker electrical connector (part of 18808) |
| 3 | 18808 | Door speaker |
| 4 | - | Door speaker screws (4 required) |
| 5 | - | Door speaker electrical connectors (part of 14630/14631) |
