Removal And Installation: Spring: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION TABLE
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) | ESA-M1C75-B |
NOTE:
Front Wheel Drive (FWD) shown in illustration, AWD
similar.

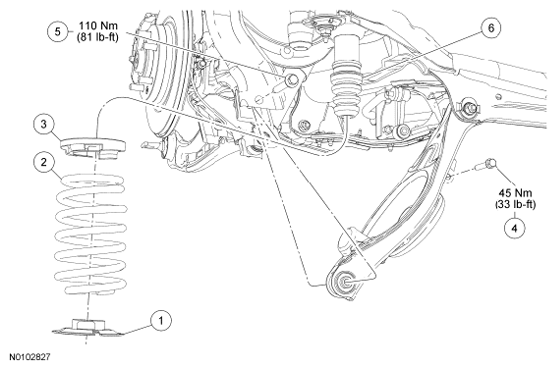

Fig 1: Identifying Spring Lower Seat, Spring Upper Seat, Stabilizer Bar Link Lower Bolt & Jounce Bumper
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5536A | Spring lower seat |
| 2 | 5560 | Spring |
| 3 | 5536B | Spring upper seat |
| 4 | W302134 | Stabilizer bar link lower bolt |
| 5 | W302125 | Lower arm outboard bolt |
| 6 | 5K570 | Jounce bumper |
