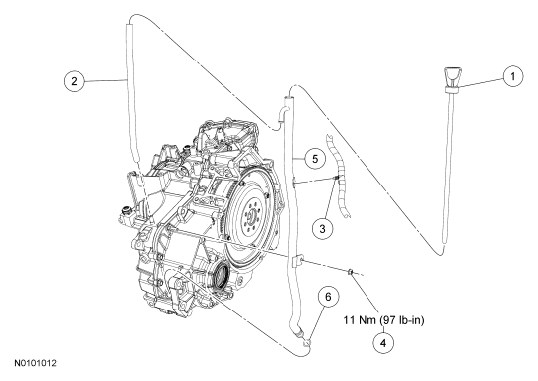

Transaxle Filler Tube: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
7A020 |
Transmission fluid level indicator |
| 2 |
- |
Transaxle vent tube (part of 7A228) |
| 3 |
13A506 |
Wiring harness retainer |
| 4 |
N805320 |
Transaxle filler tube nut |
| 5 |
7A228 |
Transaxle filler tube |
| 6 |
- |
Transaxle filler tube O-ring |
