Steering Gear: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Steering Arm | 211-003 (T64P-3590-F) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

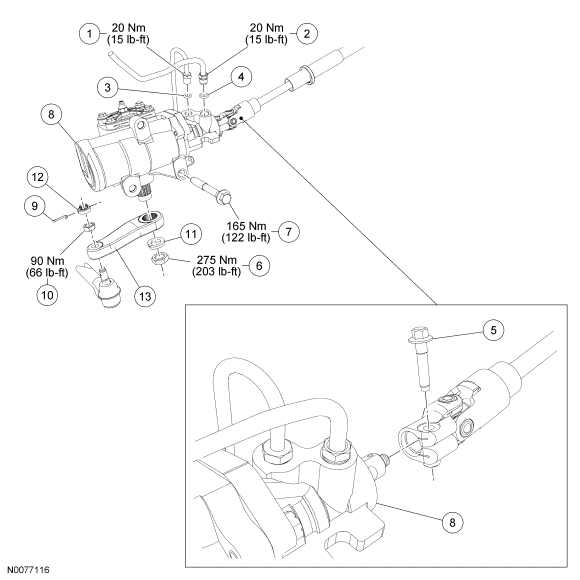

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 2 | - | Return line fitting (part of 3A713) |
| 3 | N811029 | O-ring seal |
| 4 | N811028 | O-ring seal |
| 5 | N808684 | Steering column shaft bolt (all except commercial chassis) |
| 5 | N803942 | Steering column shaft bolt (commercial chassis) |
| 6 | 380771 | Sector shaft arm nut |
| 7 | W713478 | Steering gear bolt (3 required) |
| 8 | 3504 | Steering gear |
| 9 | N642569 | Cotter pin |
| 10 | 3N807 | Drag link-to-sector shaft arm nut |
| 11 | 34798 | Sector shaft arm lock washer |
| 12 | W711374 | Nut retainer |
| 13 | 3590 | Sector shaft arm |
