Driveshaft Slip Yoke: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Keystone Clamp | 211-002 (T63P-9171-A) |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

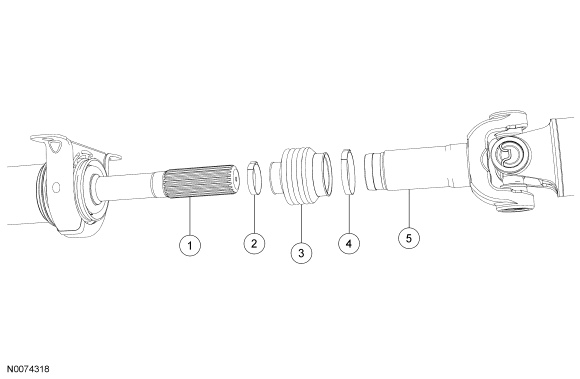

| Item | Part Number | Description |
|---|---|---|
| 1 | 4602 | Coupling shaft |
| 2 | 4K227 | Driveshaft slip yoke boot clamp |
| 3 | 4221 | Driveshaft slip yoke boot |
| 4 | 4K227 | Driveshaft slip yoke boot clamp |
| 5 | 4841 | Driveshaft slip-yoke |
