Mass Air Flow (MAF) Sensor: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

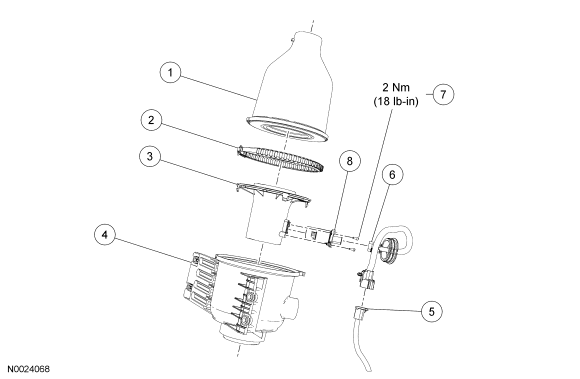

| Item | Part Number | Description |
|---|---|---|
| 1 | 9A612 | Air cleaner tray |
| 2 | 9628 | Air cleaner clamp |
| 3 | 9A628 | Mass air flow (MAF) sensor body |
| 4 | 9643 | Air cleaner cover |
| 5 | - | Engine harness-to-MAF sensor pigtail electrical connector (part of 12A581) |
| 6 | 12A690 | MAF sensor pigtail electrical connector |
| 7 | W709287 | MAF sensor screw (2 required) |
| 8 | 12B579 | MAF sensor |
