Intake Air Temperature 2 (IAT2) Sensor: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

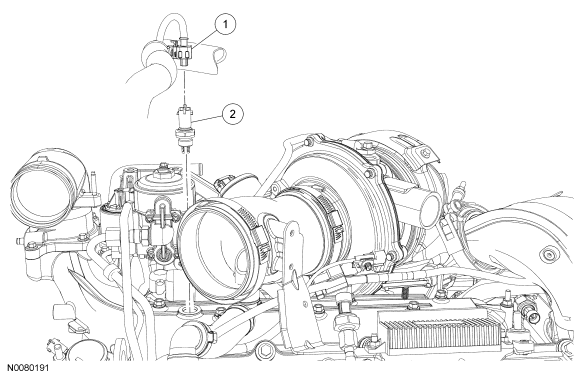

Fig 1: Exploded View Of Intake Air Temperature 2 (IAT2) Sensor

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Intake air temperature 2 (IAT2) sensor electrical connector (part of 12B637)
2	12A697	IAT2 sensor
