Camshaft Position (CMP) Sensor: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

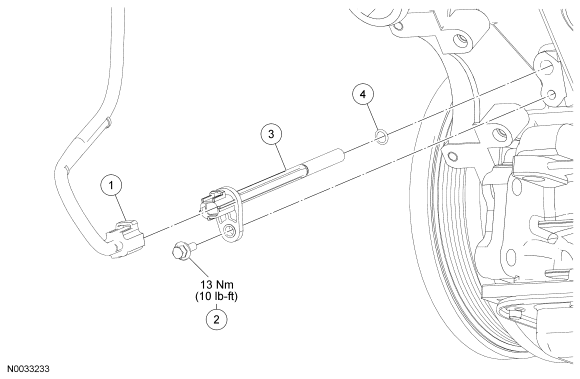

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 | N605894 | CMP sensor bolt |
| 3 | 12K073 | CMP sensor |
| 4 | - | CMP sensor O-ring seal |
