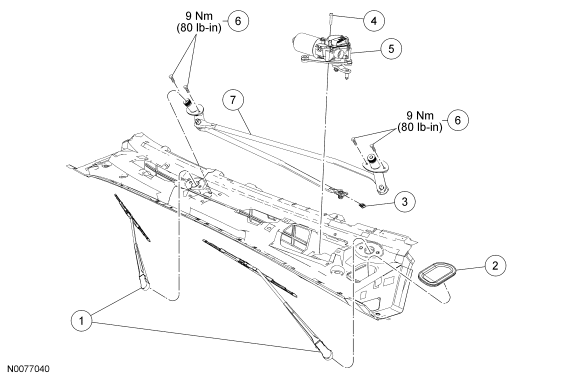

Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17526 |
Wiper pivot arms |
| 2 |
15020A51 |
Access cover |
| 3 |
- |
Retaining clip (part of pivot shaft assembly) |
| 4 |
N504086 |
Bolt (3 required) |
| 5 |
17504 |
Windshield wiper motor |
| 6 |
- |
Bolts (4 required) |
| 7 |
17566 |
Pivot shaft assembly |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Windshield wiper reservoir nut |
| 2 |
- |
Windshield wiper reservoir bolt |
| 3 |
17A605B |
Filler hose |
| 4 |
- |
Washer pump electrical connector |
| 5 |
- |
Wiring harness locator |
| 6 |
- |
Windshield washer hose |
| 7 |
17618 |
Washer pump and reservoir |
- For additional information, refer to the procedures.
