Seat - Exploded View, Rear, Bench

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Seven-passenger vehicle third row bench seat shown, others similar.

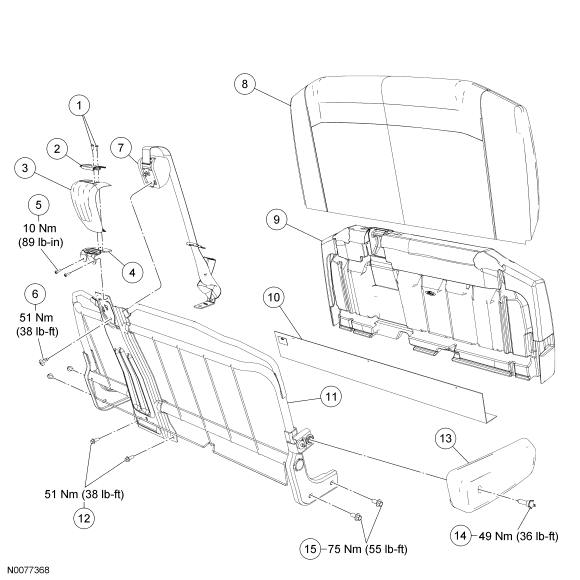

Fig 1: Exploded View Of Seat Backrest With Torque Specifications - 3-Passenger Bench

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790038	Safety belt guide cover screws (2 required)
2	60262	Safety belt guide cover
3	613C46	Safety belt retractor cover
4	613D10	Safety belt guide bracket
5	W701945	Safety belt guide bracket screw (2 required)
6	W704400	Safety belt retractor bolt
7	611B64	Center safety belt retractor
8	66600	Backrest trim cover
9	66800	Backrest foam pad
10	-	Panel
11	613A38	Seat backrest frame assembly
12	W505274	Backrest-to-cushion frame rear bolts (2 required)
13	65478	Armrest (if equipped)
14	60108	Armrest bolt (if equipped)
15	W505283	Backrest-to-cushion frame outboard bolts (4 required)

NOTE: Seven-passenger vehicle third row bench seat shown, others similar.

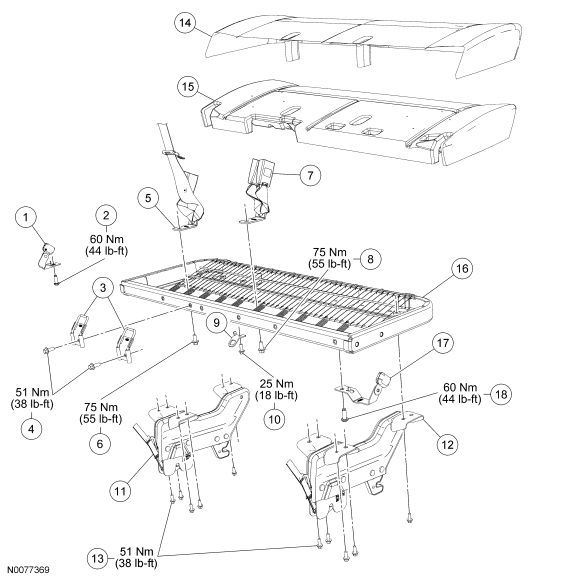

Fig 2: Exploded View Of Seat Cushion With Torque Specifications - 3-Passenger Bench

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	60045	LH detachable safety belt anchor
2	-	LH detachable safety belt anchor bolt (part of 60045)
3	601B28	Lower anchors and tethers for children (LATCH) (2 required)
4	W505274	LATCH bolts (2 required)
5	-	Center safety belt anchor (part of 611B64)
6	W505283	Safety belt anchor bolt
7	60044	Safety belt buckle
8	W505283	Safety belt buckle bolt
9	613D20	Child safety seat tether anchor
10	W505274	Child safety seat tether anchor bolt
11	-	Seat riser, LH (part of 63160)
12	-	Seat riser, RH (part of 63160)
13	W505274	Seat riser bolts (10 required)
14	63804	Cushion trim cover
15	66800	Cushion foam pad
16	63160	Cushion frame assembly
17	60044	RH detachable safety belt anchor
18	-	RH detachable safety belt anchor bolt (part of 60044)

NOTE: Fifteen-passenger fifth row 4-passenger bench seat shown, 12-passenger fourth row similar.

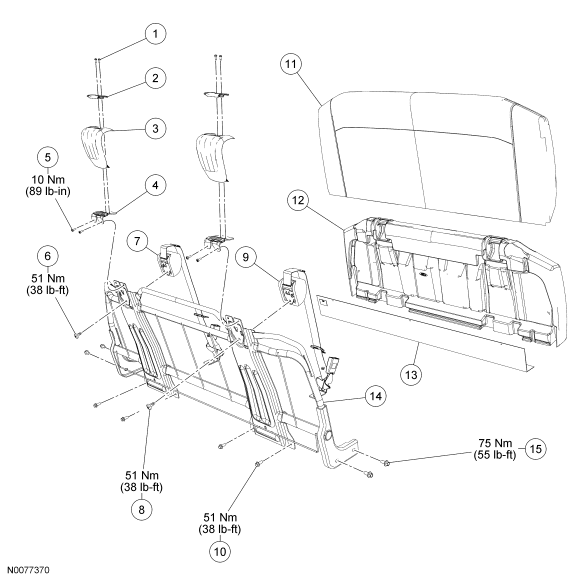

Fig 3: Exploded View Of Seat Backrest With Torque Specifications - 4-Passenger Bench

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790038	Safety belt guide cover screw (4 required)
2	60262	Safety belt guide cover (2 required)
3	613C46	Safety belt retractor cover (2 required)
4	613D10	Safety belt guide bracket (2 required)
5	W701945	Safety belt guide bracket screw (4 required)
6	W704400	LH center safety belt retractor bolt
7	611B64	LH center safety belt retractor
8	W704400	RH center safety belt retractor bolt
9	611B64	RH center safety belt retractor
10	W505274	Backrest-to-cushion frame rear bolt (4 required)
11	66600	Backrest trim cover
12	66800	Backrest foam pad
13	-	Panel
14	613A38	Seat backrest frame assembly
15	W505283	Backrest-to-cushion frame outboard bolt (4 required)

NOTE: Fifteen-passenger fifth row 4-passenger bench seat shown, 12-passenger fourth row similar.

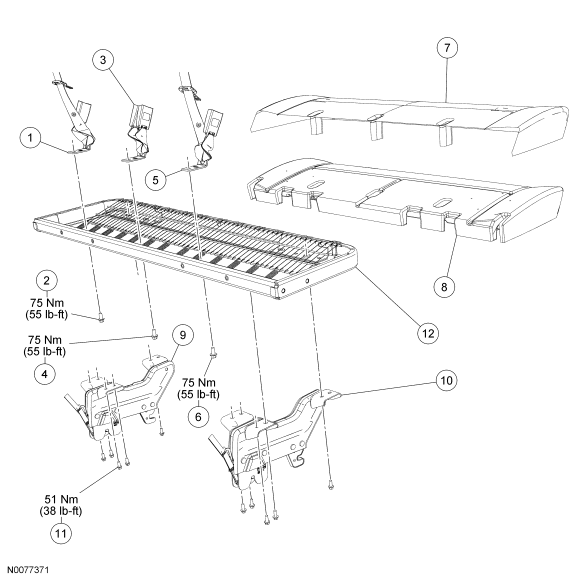

Fig 4: Exploded View Of Seat Cushion With Torque Specifications - 4-Passenger Bench

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH center safety belt anchor (part of 611B64)
2	W505283	LH center safety belt anchor bolt
3	60044	Safety belt buckle
4	W505283	Safety belt buckle bolt
5	-	RH center safety belt anchor (part of 611B64)
6	W505283	RH center safety belt anchor bolt
7	63804	Cushion trim cover
8	66800	Cushion foam pad
9	-	Seat riser, LH (part of 63160)
10	-	Seat riser, RH (part of 63160)
11	W505274	Seat riser bolt (10 required)
12	63160	Cushion frame assembly

For additional information, refer to the procedures.
