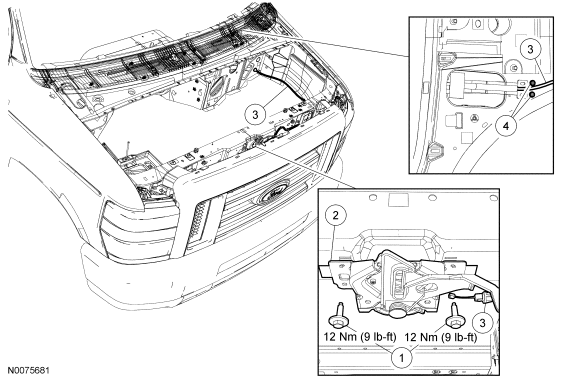

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N802850 |
Hood latch bolts (2 required) |
| 2 |
16700 |
Hood latch |
| 3 |
16916 |
Hood latch release handle and cable |
| 4 |
N806495 |
Hood latch release handle and cable screws (2 required) |
- For additional information, refer to the procedures.
