Door Speaker: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Front door shown, rear door similar.

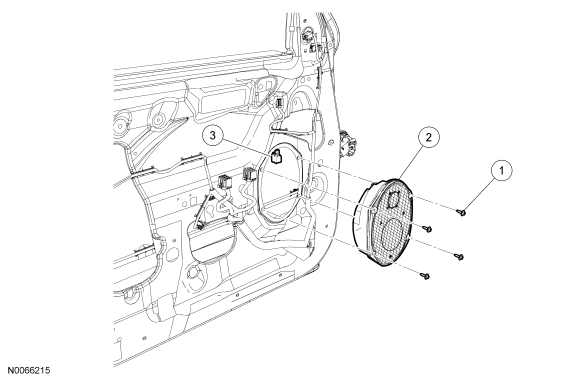

Fig 1: Door Speaker Components
GF0042687Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701918-S Door speaker screws (4 required)
2 18808 Door speaker
3 - Door speaker electrical connector (part of the door harness)
