Accelerator Cable - 2.3L: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

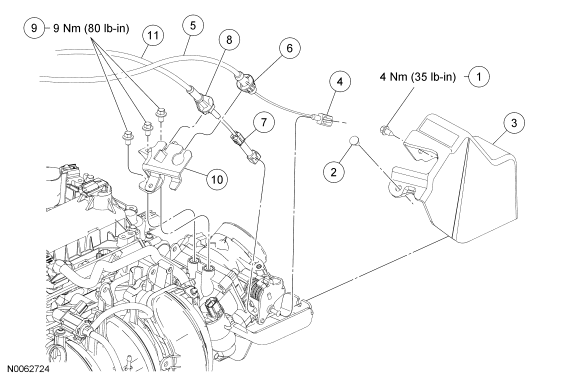

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W702251 |
Accelerator control cover shield screw |
| 2 |
- |
Pin-type retainer (part of 9E766) |
| 3 |
9E766 |
Accelerator control cover shield |
| 4 |
- |
Accelerator cable-to-throttle body (part of 9A758) |
| 5 |
9A758 |
Accelerator cable |
| 6 |
- |
Accelerator cable-to-bracket grommet (part of 9A758) |
| 7 |
- |
Speed control cable-to-throttle body (part of 9A825) |
| 8 |
- |
Speed control cable-to-bracket grommet (part of 9A825) |
| 9 |
W500210 |
Accelerator cable bracket bolts (3 required) |
| 10 |
9677 |
Accelerator cable bracket |
| 11 |
9A825 |
Speed control cable |

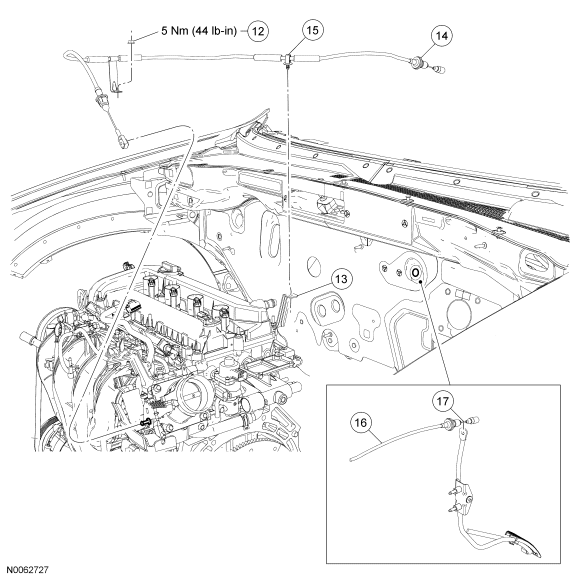

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 12 |
W520412 |
Accelerator cable bracket nut |
| 13 |
9E728 |
Accelerator cable bracket |
| 14 |
- |
Accelerator cable grommet (part of 9A758) |
| 15 |
- |
Accelerator cable pin-type retainer (part of 9A758) |
| 16 |
9A758 |
Accelerator cable |
| 17 |
- |
Accelerator cable to pedal (part of 9A758) |
