Seat - Front: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Power seat shown, manual seat similar.

NOTE: For torque specifications and torque sequence, refer to the procedure steps.

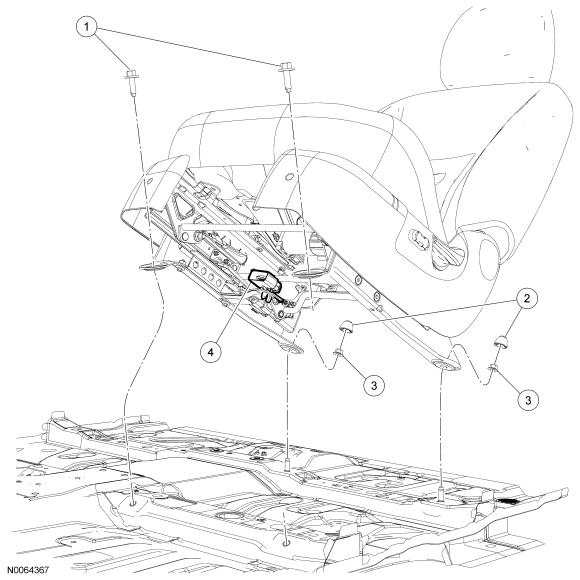

Fig 1: Seat Components - Front

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707122	Seat-to-floor front bolts (driver seat only)
1	W713271	Seat-to-floor front bolts (passenger seat only) (2 required)
2	611D02	Seat-to-floor rear nut covers
3	W707654	Seat-to-floor rear nuts
4	-	Electrical connector (part of 14C719)
