Fog Lamp Bulb: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

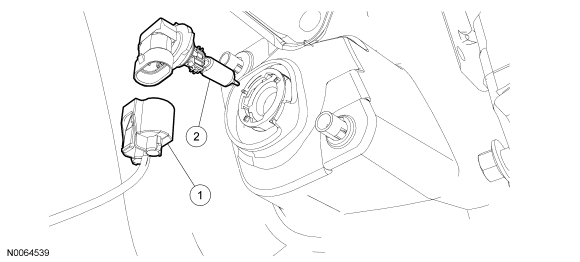

Fig 1: Fog Lamp Bulb - Mariner

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fog lamp electrical connector (part of 14290)
2	13N021	Fog lamp bulb

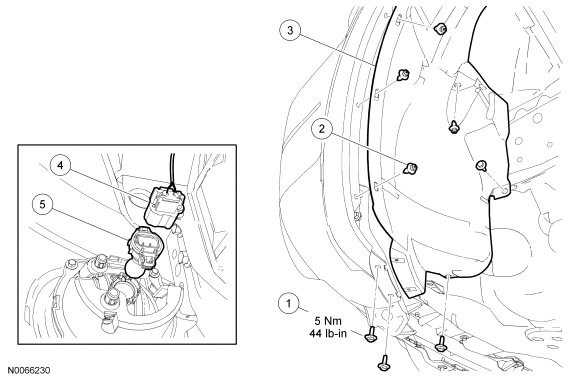

Fig 2: Fog Lamp Bulb - Escape With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Fender splash shield bolts (4 required)
2	W706713	Fender splash shield pin-type retainers (4 required)
3	16103	Fender splash shield
4	-	Fog lamp electrical connector (part of 14290)
5	13N021	Fog lamp bulb
