Right VVT Solenoid: Installing

-- Install the variable valve timing solenoid seals (1). The seals can be reused if not damaged.

Fig 1: Identifying Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to the markings made at disassembly and install the intake variable valve timing solenoid (2) and the exhaust variable valve timing solenoid (4) in their original locations.

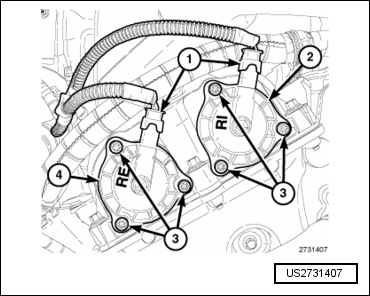

Fig 2: Identifying Variable Valve Timing Solenoids

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the variable valve timing solenoid mounting bolts (3) and tighten to 4 Nm (35 in. lbs.).

-- Connect the electrical connector (1) to the variable valve timing solenoid.

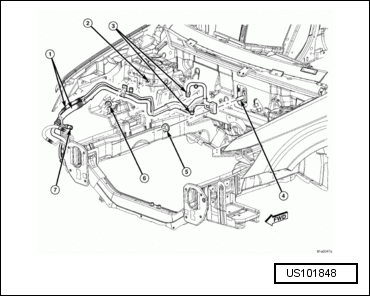

Fig 3: Identifying Upper A/C Liquid And Suction Line Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the upper A/C liquid and suction line assembly (1). Refer to Removal and Installation .

-- Install the resonator. Refer to AIR CLEANER RESONATOR .

-- Connect the negative battery cable. Refer to Battery, Disconnecting And Connecting .
