Removal And Installation: Amplifier: Installing

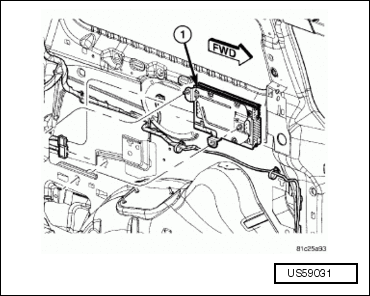

Fig 1: Identifying Amplifier Mounting Fasteners
GWWUS59031Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the amplifier and mounting fasteners.

-- Connect the electrical connectors.

-- Install the left rear quarter panel. Refer to Removal and Installation .

-- Connect the negative battery cable.
