Chime Warning System

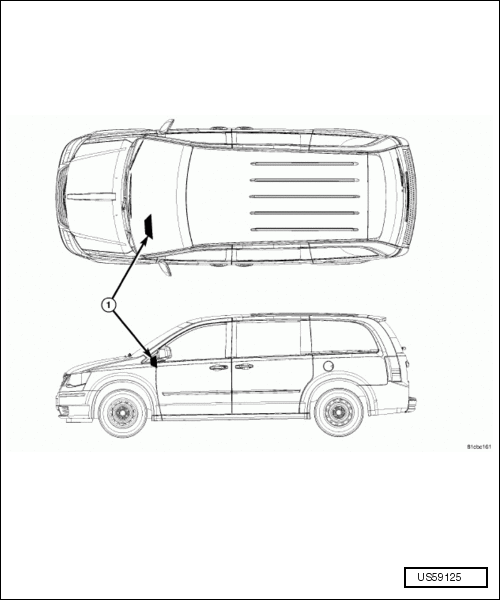

Fig 1: Locating Chime Warning System
GWWUS59125Courtesy of AUDI OF AMERICA, LLC

A chime warning system is standard factory installed equipment. The chime warning system uses an electromechanical transducer and an electromechanical relay that are soldered onto the electronic circuit board inside of the electromechanical instrument cluster to provide audible indications of various vehicle conditions that may require the attention of the vehicle operator or occupants. The EMIC also includes the hardware and software necessary to serve as the electronic body control module and is sometimes referred to as the cabin compartment node.

The electromechanical transducer generates chime tones, while the electromechanical relay generates click tones to emulate the sounds associated with conventional turn signal and hazard warning flasher operation. The microprocessor based EMIC utilizes electronic chime request messages received from other modules in the vehicle over the CAN data bus along with hard wired inputs to monitor many sensors and switches throughout the vehicle. In response to those inputs, the circuitry and programming of the EMIC allow it to control the audible outputs that are produced through its on-board transducer and relay.

The EMIC is capable of producing the following audible outputs:

Hard wired circuitry connects the EMIC and the various chime warning system switch and sensor inputs to their modules and to each other through the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical system and to the EMIC through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin out and location views for the various wire harness connectors, splices and grounds.

The EMIC chime warning system circuits and components cannot be adjusted or repaired. If the EMIC circuitry, the on-board transducer or the relay are damaged or ineffective, the EMIC unit must be replaced.

The chime warning system operates on battery voltage received through a fuse in the totally integrated power module on a non-switched fused B+ circuit so that the system may operate regardless of the ignition switch position. The chime warning system also monitors the ignition switch position so that some chime features are functional only with the ignition switch in the ON position, while others are functional regardless of the ignition switch position.

The chime warning system provides an audible indication to the vehicle operator or occupants under the following conditions:

The EMIC/CCN provides chime service for all available features in the chime warning system, except for the audible warning function provided by the optional park assist system display module. The EMIC/CCN relies upon its internal programming, numerous hard wired inputs, and electronic message inputs received from other modules over the CAN and the local interface network data buses to provide the chime warning system features. The internal programming of the EMIC/CCN determines the priority of each chime request input that is received, as well as the rate and duration of each chime that is to be generated.

The hard wired circuits between components related to the chime warning system may be diagnosed using conventional diagnostic tools and procedures. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector pin out information and location views for the various wire harness connectors, splices and grounds.

However, conventional diagnostic methods will not prove conclusive in the diagnosis of the chime warning system or the electronic controls or communication between modules and other devices that provide some features of the chime warning system. The most reliable, efficient, and accurate means to diagnose the chime warning system or the electronic controls and communication related to chime warning system operation requires the use of a diagnostic scan tool. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
