Power Inverter Module: Installing

-- Install the inverter module to the studs.

-- Install the inverter module nuts.

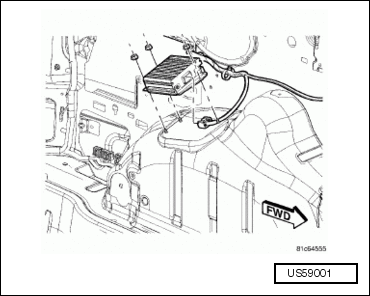

Fig 1: Identifying Electrical Connector, Inverter Module & Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the electrical connector.

-- Install the left rear quarter trim panel. Refer to REMOVAL AND INSTALLATION .

-- Connect the negative battery cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
