Test Step 3 - Liftgate Clutch Driver Circuit Open

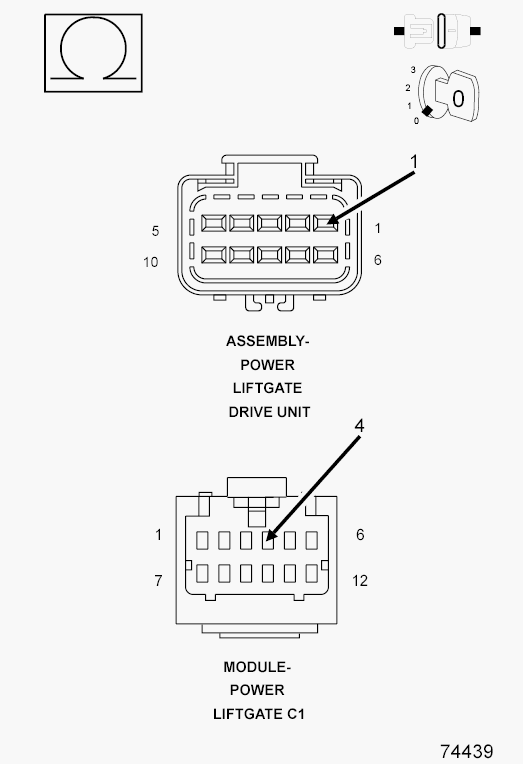

Fig 1: Liftgate Clutch Driver Circuit Open

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Disconnect the power liftgate drive unit connector.
• Measure the resistance of the liftgate clutch driver circuit between the power liftgate C1 harness connector and the power liftgate drive unit harness connector.

Is the resistance less than 2.0 ohms?

Yes

• Go to Test Step 4 Test Step 4 - Check the Ground Circuit for an Open

No

• Repair the liftgate clutch driver circuit for an open.
• Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
