Test Step 2 - Logic Ground Open

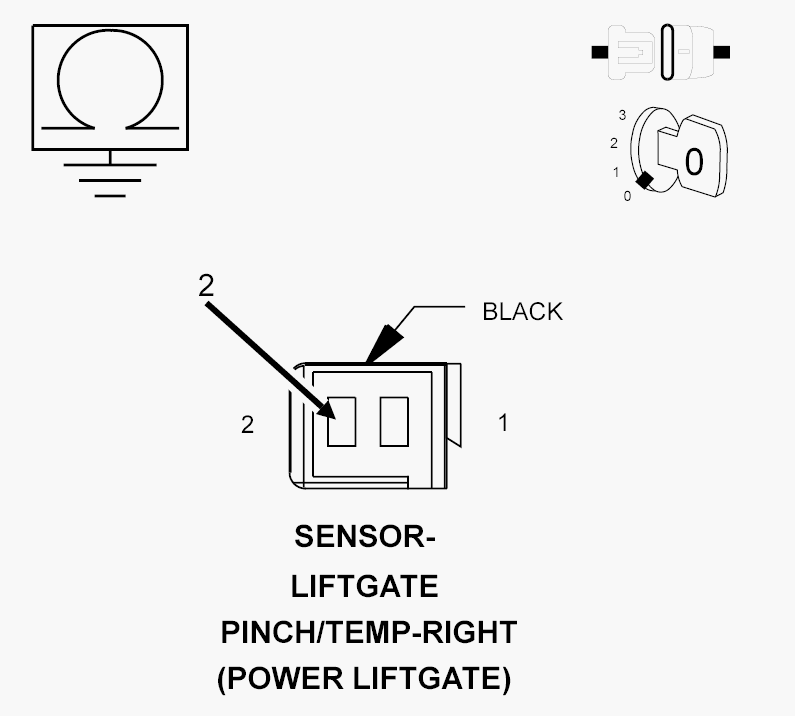

Fig 1: Testing Logic Ground Open

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Turn the ignition OFF.
• Disconnect the right liftgate pinch sensor connector.
• Measure the resistance between ground and the logic ground circuit in the right pinch sensor harness connector.

Is the resistance less than 9.5 ohms?

Yes

• Go to Test Step 3 Test Step 3 - Check the Right Liftgate Pinch Sensor

No

• Repair the logic ground circuit for an open.
• Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
