Special Tools

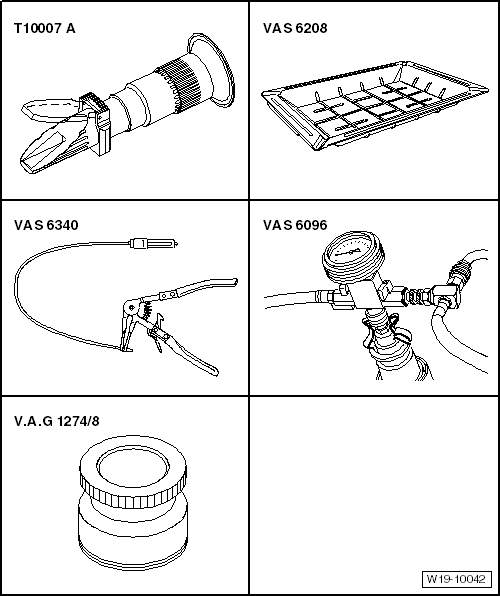

Fig 1: Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Adapter V.A.G 1274/8
• Drip Tray for VAS 6100 VAS 6208
• Hose Clip Pliers VAS 6340
• Cooling System Charge Unit VAS 6096
• Refractometer T10007 A

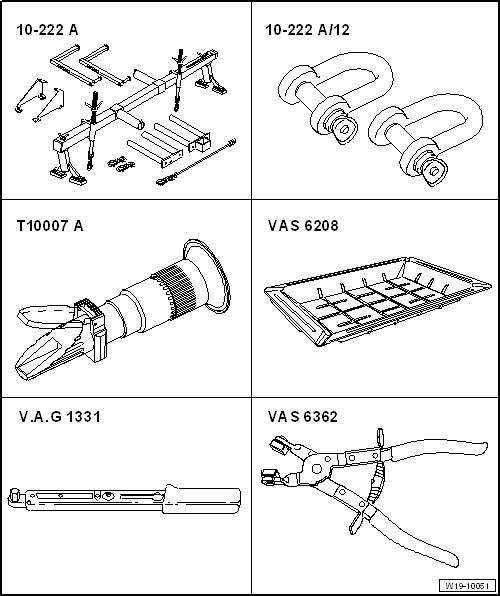

Fig 2: Identifying Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10-222 A with Bracket for Engine 10 - 222 A /1
• Shackle 10-222 A/12
• Refractometer T10007A
• Drip Tray for VAS 6100 VAS 6208
• Torque Wrench (5-50 Nm) V.A.G 1331
• Hose Clip Pliers VAS 6362

Special tools and workshop equipment required

• Engine Support Bridge 10-222 A
• Shackle 10-222 A/12
• Cooling System Tester V.A.G 1274 B
  Fig 3: Cooling System Tester V.A.G 1274 B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter V.A.G 1274/9
  Fig 4: Adapter V.A.G 1274/9

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers VAS 6340
  Fig 5: Hose Clamp Pliers VAS 6340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench (5-50 Nm) V.A.G 1331
  Fig 6: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
